drylin  W                                                                                                                                                                                                                 drylin  W
                                                                                                                                                                                                                                      ®
            ®
                                                                                                                                           ®
                               ®
        profile      drylin  W profile guides | Product range                                                                    drylin  W profile guides | Product range                                                         profile
        guides                                                                                                                                                                                                                    guides

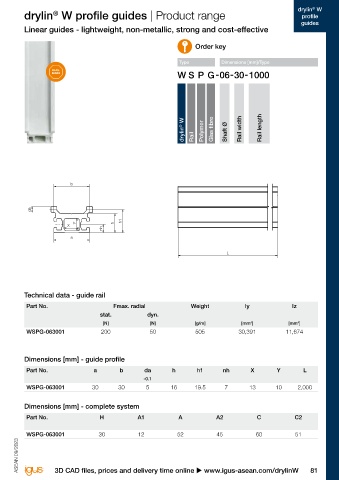

                     Linear guides - lightweight, non-metallic, strong and X-ray transparent                                     Linear guides - lightweight, non-metallic, strong and cost-effective
                                                                    Order key                                                                                                                Order key


                                                               Type           Dimensions [mm]/Type                                                                                     Type           Dimensions [mm]/Type
                      CARBON                                                                                                              GLAS-
                                                                                                                                          FASER








                                                                drylin ®  W  Rail  Polymer  Carbon  Shaft Ø  Rail width  Rail length                                                     drylin ®  W  Rail  Polymer  Glas fibre  Shaft Ø  Rail width  Rail length











                                                                                                                  b                                                                                                                       b
                         b                                                                                                                       b


                                                                                                    da                                                                                                                      da
           da                                                                                                                      da
                                                                                                                                    h1                                                                                                                      h1
                                                                                                                    Y            h                                                                                                          Y            h
                                           h1                                                                    X                                 Y               h1                                                                    X
                          Y
                        X               h                                                                                    nh                 X               h                                                                                    nh
                                    nh                                                                                                                      nh
                                                                                                                  a                                                                                                                       a
                         a                                                                                                                       a
                                                                                L                                                                                                                       L
 L                                                                                                            L






        Technical data - guide rail                                                                                              Technical data - guide rail
         Part No.                       Fmax. radial               Weight             Iy              Iz                         Part No.                       Fmax. radial               Weight             Iy               Iz
                                   stat.            dyn.                                                                                                   stat.            dyn.
                                                                                                                                                                                                                4
                                                                                                                                                                                                                                 4
                                    [N]              [N]            [g/m]            [mm ]           [mm ]                                                  [N]              [N]            [g/m]            [mm ]           [mm ]
                                                                                        4
                                                                                                        4
         WSPC-06-30                300              60              410             30,391          11,674                       WSPG-063001                200              50              505            30,391          11,674

        Dimensions [mm] - guide profile                                                                                          Dimensions [mm] - guide profile
         Part No.                a        b        da       h        h1       nh        X        Y        L                      Part No.                a        b        da        h       h1       nh        X        Y         L
                                                  -0.1                                                                                                                     -0.1
         WSPC-06-30             30       30        5        16      19.5       7       13        10     3,000                    WSPG-063001            30        30       5        16      19.5       7        13       10      2,000


                                                                                                                                 Dimensions [mm] - complete system

                                                                                                                                 Part No.                  H            A1             A            A2            C             C2

                                                                                                                                 WSPG-063001               30            12           52            45            60            51
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023




        80     Online tools and more information u www.igus-asean.com/drylinW                                                              3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW                81
