drylin W drylin W
®
®
®
®

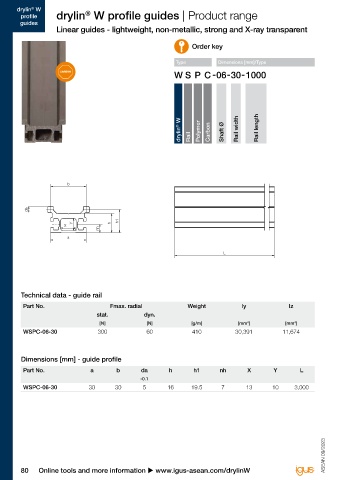

profile drylin W profile guides | Product range drylin W profile guides | Product range profile
guides guides
Linear guides - lightweight, non-metallic, strong and X-ray transparent Linear guides - lightweight, non-metallic, strong and cost-effective
Order key Order key

Type Dimensions [mm]/Type Type Dimensions [mm]/Type
CARBON GLAS-
FASER

drylin ® W Rail Polymer Carbon Shaft Ø Rail width Rail length drylin ® W Rail Polymer Glas fibre Shaft Ø Rail width Rail length

b b
b b

da da
da da
h1 h1
Y h Y h
h1 X Y h1 X
Y
X h nh X h nh
nh nh
a a
a a
L L
L L

Technical data - guide rail Technical data - guide rail
Part No. Fmax. radial Weight Iy Iz Part No. Fmax. radial Weight Iy Iz
stat. dyn. stat. dyn.
4
4
[N] [N] [g/m] [mm ] [mm ] [N] [N] [g/m] [mm ] [mm ]
4
4
WSPC-06-30 300 60 410 30,391 11,674 WSPG-063001 200 50 505 30,391 11,674

Dimensions [mm] - guide profile Dimensions [mm] - guide profile
Part No. a b da h h1 nh X Y L Part No. a b da h h1 nh X Y L
-0.1 -0.1
WSPC-06-30 30 30 5 16 19.5 7 13 10 3,000 WSPG-063001 30 30 5 16 19.5 7 13 10 2,000

Dimensions [mm] - complete system

Part No. H A1 A A2 C C2

WSPG-063001 30 12 52 45 60 51
ASEAN 09/2023 ASEAN 09/2023

80 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 81
