drylin W drylin W
®
®
®
®
profile drylin W profile guides | Product range drylin W profile guides | Product range New profile
guides guides
Pillow blocks, round; change the liner Stainless steel pillow blocks, round; change the liner
without disassembly without disassembly
Order key Order key

Type Size Type Size

iglidur material
®
X: iglidur X
®
A180: iglidur A180
®
A160: iglidur A160
®
C1
®
drylin ® W Liner material iglidur ® J200 Pillow block, round Replaceable C3 Standard Size Aluminium A3 drylin ® W iglidur ® material Pillow block, round Replaceable Standard Size Stainless steel E7: iglidur E7

C1
C1 B C3
C3 A3 A3
A-A B K2 ! Coz-
K2 A
H H
K3 A K3

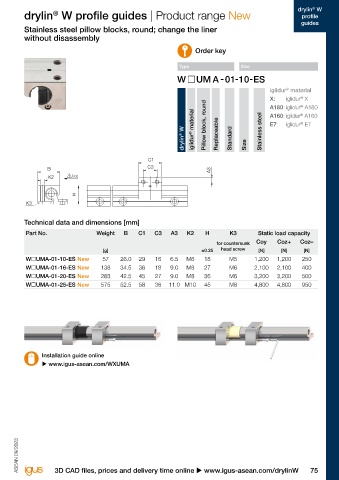

Technical data and dimensions [mm] Technical data and dimensions [mm]
A-A
Part No. Weight B B C1 C3 A3 K2 K3 150) H Static load capacity Part No. Weight B C1 C3 A3 K2 H K3 Static load capacity
K2 A
Coy Coz+ Coz– for countersunk Coy Coz+ Coz–
H
[g] ±0.25 [N] [N] [N] [g] ±0.25 head screw [N] [N] [N]
K3
WJ200UMA-01-10-AL 18 26.0 A 29 16 6.5 M6 M5 18 1,000 1,000 200 W UMA-01-10-ES New 57 26.0 29 16 6.5 M6 18 M5 1,200 1,200 250
WJ200UMA-01-16-AL 44 34.5 36 18 9.0 M8 M6 27 1,250 1,250 275 W UMA-01-16-ES New 138 34.5 36 18 9.0 M8 27 M6 2,100 2,100 400
WJ200UMA-01-20-AL 91 42.5 45 27 9.0 M8 M6 36 1,500 1,500 350 W UMA-01-20-ES New 283 42.5 45 27 9.0 M8 36 M6 3,200 3,200 500
150) Counterbore for socket cap bolt W UMA-01-25-ES New 575 52.5 58 36 11.0 M10 45 M8 4,800 4,800 950

Installation guide online
u www.igus-asean.com/WXUMA
Simple bearing liner replacement.

Suitable mounting plate
u Page 130

More installation can be found online
u www.igus-asean.com/replacement-bearing-installation

Can be combined with: Suitable liner material/accessories
