drylin  W                                                                                                                                                                                                                 drylin  W
                                                                                                                                                                                                                                      ®
            ®
                               ®
                                                                                                                                           ®
        profile      drylin  W profile guides | Product range New                                                                drylin  W profile guides | Product range New                                                     profile
        guides                                                                                                                                                                                                                    guides

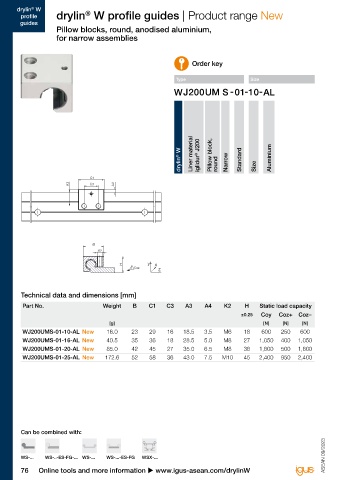

                     Pillow blocks, round, anodised aluminium,                                                                   Pillow blocks, tandem, round, anodised aluminium,
                     for narrow assemblies                                                                                       for narrow assemblies

                                                                                                                                                                                             Order key
                                                                    Order key

                                                                                                                                                                                       Type                          Size
                                                               Type                      Size













                                                                drylin ®  W  Liner material    iglidur ®  J200  Pillow block,    round  Narrow  Standard  Size  Aluminium                drylin ®  W  Liner material    iglidur ®  J200  Pillow block,    round  Tandem  Narrow  Standard  Size  Aluminium




                                 C1                                                                                                                      C1
                         A3      C3      A4                                                                                                              C3
                                                                                                                                             A3                      A4










                                  B
                                                                                                                                                          B
                                    K2
                                                                                                                                                            K2
                                            H        y  x
                                               !  Coz-   z                                                                                                          H         y  x
                                                                                                                                                                        !  Coz-  z


        Technical data and dimensions [mm]                                                                                       Technical data and dimensions [mm]
         Part No.                    Weight     B    C1     C3    A3     A4     K2     H    Static load capacity                 Part No.                     Weight    B     C1    C3     A3    A4     K2     H    Static load capacity
                                                                                      ±0.25  Coy   Coz+   Coz–                                                                                                ±0.25  Coy   Coz+   Coz–
                                       [g]                                                   [N]    [N]    [N]                                                  [g]                                                   [N]   [N]    [N]
         WJ200UMS-01-10-AL New        16.0     23    29     16   18.5    3.5    M6     18    600    250   600                    WJ200UMTS-01-10-AL New         33      23    58    45    18.5   3.5    M6     18   1,200   420   1,200
         WJ200UMS-01-16-AL New        40.5     35    36     18   28.5    5.0    M8     27   1,050   400   1,050                  WJ200UMTS-01-16-AL New         84      35    72    54    28.5   5.0    M8     27   2,100   670   2,100
         WJ200UMS-01-20-AL New        85.0     42    45     27   35.0    6.5    M8     36   1,600   500   1,600
         WJ200UMS-01-25-AL New        172.6    52    58     36   43.0    7.5   M10     45   2,400   950   2,400














        Can be combined with:                                                                                                    Can be combined with:                                Suitable liner material:
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023


        WS-...   WS-..-ES-FG-... WS-...  WS-...-ES-FG  WSX-...                                                                   WS-...  WS-..-ES-FG-... WS-...  WS-...-ES-FG  WSX-...  iglidur  J  iglidur  J200 iglidur  X  iglidur  E7  iglidur  A180
                                                                                                                                                                                                                        ®
                                                                                                                                                                                                                                 ®
                                                                                                                                                                                                              ®
                                                                                                                                                                                           ®
                                                                                                                                                                                                    ®
