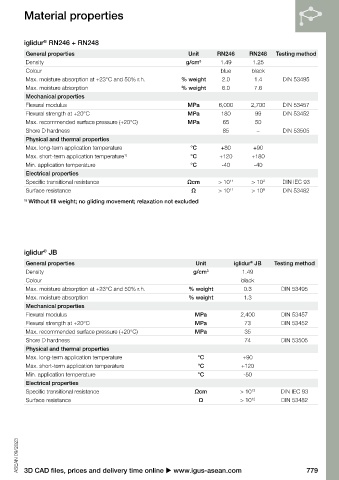

Material properties

iglidur RN246 + RN248
®
General properties Unit RN246 RN248 Testing method
Density g/cm 3 1.49 1.25
Colour blue black
Max. moisture absorption at +23°C and 50% r.h. % weight 2.0 1.4 DIN 53495
Max. moisture absorption % weight 6.0 7.6
Mechanical properties
Flexural modulus MPa 6,000 2,700 DIN 53457
Flexural strength at +20°C MPa 180 99 DIN 53452
Max. recommended surface pressure (+20°C) MPa 65 50
Shore D hardness 85 – DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +80 +90
Max. short-term application temperature 1) °C +120 +180
Min. application temperature °C -40 -40
Electrical properties
Specific transitional resistance Ωcm > 10 11 > 10 3 DIN IEC 93
Surface resistance Ω > 10 11 > 10 9 DIN 53482

1) Without fill weight; no gliding movement; relaxation not excluded

iglidur JB
®
®
General properties Unit iglidur JB Testing method
Density g/cm 3 1.49
Colour black
Max. moisture absorption at +23°C and 50% r.h. % weight 0.3 DIN 53495
Max. moisture absorption % weight 1.3
Mechanical properties
Flexural modulus MPa 2,400 DIN 53457
Flexural strength at +20°C MPa 73 DIN 53452
Max. recommended surface pressure (+20°C) MPa 35
Shore D hardness 74 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +90
Max. short-term application temperature °C +120
Min. application temperature °C -50
Electrical properties
Specific transitional resistance Ωcm > 10 13 DIN IEC 93
Surface resistance Ω > 10 12 DIN 53482
