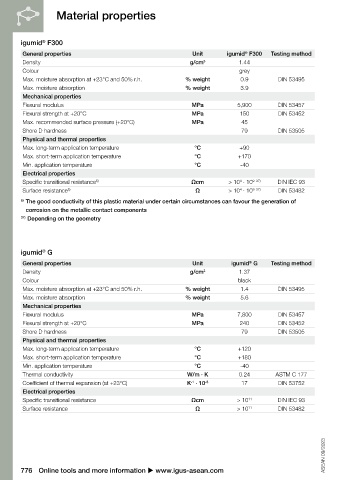

Material properties

®
igumid F300
General properties Unit igumid F300 Testing method
®
Density g/cm 3 1.44
Colour grey
Max. moisture absorption at +23°C and 50% r.h. % weight 0.9 DIN 53495
Max. moisture absorption % weight 3.9
Mechanical properties
Flexural modulus MPa 5,900 DIN 53457
Flexural strength at +20°C MPa 150 DIN 53452
Max. recommended surface pressure (+20°C) MPa 45
Shore D hardness 79 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +90
Max. short-term application temperature °C +170
Min. application temperature °C -40
Electrical properties
Specific transitional resistance 5) Ωcm > 10 - 10 DIN IEC 93
9 37)
4
Surface resistance 5) Ω > 10 - 10 DIN 53482
4
9 37)
5) The good conductivity of this plastic material under certain circumstances can favour the generation of
corrosion on the metallic contact components
37) Depending on the geometry

igumid G
®
®
General properties Unit igumid G Testing method
Density g/cm 3 1.37
Colour black
Max. moisture absorption at +23°C and 50% r.h. % weight 1.4 DIN 53495
Max. moisture absorption % weight 5.6
Mechanical properties
Flexural modulus MPa 7,800 DIN 53457
Flexural strength at +20°C MPa 240 DIN 53452
Shore D hardness 79 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +120
Max. short-term application temperature °C +180
Min. application temperature °C -40
Thermal conductivity W/m · K 0.24 ASTM C 177
Coefficient of thermal expansion (at +23°C) K · 10 -5 17 DIN 53752
-1
Electrical properties
Specific transitional resistance Ωcm > 10 11 DIN IEC 93
Surface resistance Ω > 10 11 DIN 53482
