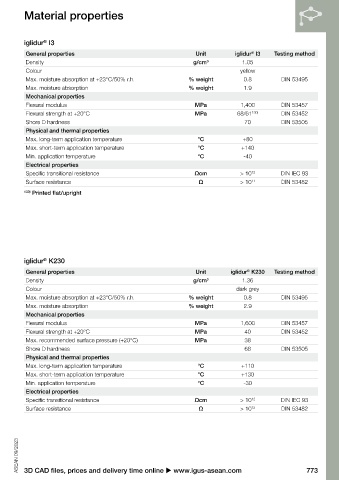

Material properties

®
iglidur I3
General properties Unit iglidur I3 Testing method
®
Density g/cm 3 1.05
Colour yellow
Max. moisture absorption at +23°C/50% r.h. % weight 0.8 DIN 53495
Max. moisture absorption % weight 1.9
Mechanical properties
Flexural modulus MPa 1,400 DIN 53457
Flexural strength at +20°C MPa 68/61 130) DIN 53452
Shore D hardness 70 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +80
Max. short-term application temperature °C +140
Min. application temperature °C -40
Electrical properties
Specific transitional resistance Ωcm > 10 12 DIN IEC 93
Surface resistance Ω > 10 11 DIN 53482

130) Printed flat/upright

iglidur K230
®
®
General properties Unit iglidur K230 Testing method
Density g/cm 3 1.36
Colour dark grey
Max. moisture absorption at +23°C/50% r.h. % weight 0.8 DIN 53495
Max. moisture absorption % weight 2.9
Mechanical properties
Flexural modulus MPa 1,600 DIN 53457
Flexural strength at +20°C MPa 40 DIN 53452
Max. recommended surface pressure (+20°C) MPa 38
Shore D hardness 68 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +110
Max. short-term application temperature °C +130
Min. application temperature °C -30
Electrical properties
Specific transitional resistance Ωcm > 10 12 DIN IEC 93
Surface resistance Ω > 10 12 DIN 53482
