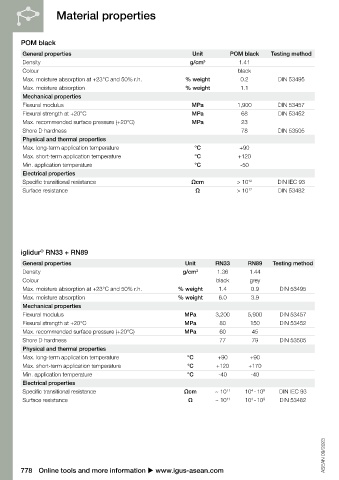

Material properties

POM black

General properties Unit POM black Testing method
Density g/cm 3 1.41
Colour black
Max. moisture absorption at +23°C and 50% r.h. % weight 0.2 DIN 53495
Max. moisture absorption % weight 1.1
Mechanical properties
Flexural modulus MPa 1,900 DIN 53457
Flexural strength at +20°C MPa 68 DIN 53452
Max. recommended surface pressure (+20°C) MPa 23
Shore D hardness 78 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +90
Max. short-term application temperature °C +120
Min. application temperature °C -50
Electrical properties
Specific transitional resistance Ωcm > 10 12 DIN IEC 93
Surface resistance Ω > 10 12 DIN 53482

iglidur RN33 + RN89
®
General properties Unit RN33 RN89 Testing method
Density g/cm 3 1.36 1.44
Colour black grey
Max. moisture absorption at +23°C and 50% r.h. % weight 1.4 0.9 DIN 53495
Max. moisture absorption % weight 6.0 3.9
Mechanical properties
Flexural modulus MPa 3,200 5,900 DIN 53457
Flexural strength at +20°C MPa 80 150 DIN 53452
Max. recommended surface pressure (+20°C) MPa 60 45
Shore D hardness 77 79 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +90 +90
Max. short-term application temperature °C +120 +170
Min. application temperature °C -40 -40
Electrical properties
Specific transitional resistance Ωcm ~ 10 11 10 - 10 9 DIN IEC 93
4
Surface resistance Ω ~ 10 11 10 - 10 9 DIN 53482
4
