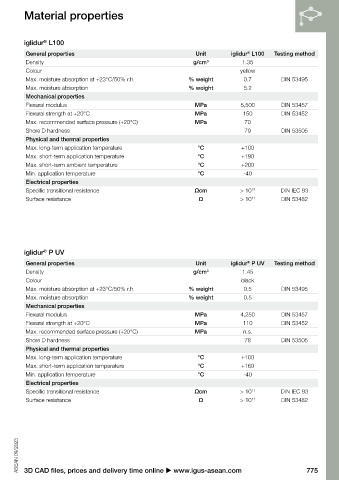

Material properties

®
iglidur L100
General properties Unit iglidur L100 Testing method
®
Density g/cm 3 1.35
Colour yellow
Max. moisture absorption at +23°C/50% r.h. % weight 0.7 DIN 53495
Max. moisture absorption % weight 5.2
Mechanical properties
Flexural modulus MPa 5,500 DIN 53457
Flexural strength at +20°C MPa 150 DIN 53452
Max. recommended surface pressure (+20°C) MPa 70
Shore D hardness 79 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +100
Max. short-term application temperature °C +190
Max. short-term ambient temperature °C +200
Min. application temperature °C -40
Electrical properties
Specific transitional resistance Ωcm > 10 13 DIN IEC 93
Surface resistance Ω > 10 11 DIN 53482

iglidur P UV
®
®
General properties Unit iglidur P UV Testing method
Density g/cm 3 1.45
Colour black
Max. moisture absorption at +23°C/50% r.h. % weight 0.5 DIN 53495
Max. moisture absorption % weight 0.5
Mechanical properties
Flexural modulus MPa 4,250 DIN 53457
Flexural strength at +20°C MPa 110 DIN 53452
Max. recommended surface pressure (+20°C) MPa n.s.
Shore D hardness 78 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +100
Max. short-term application temperature °C +160
Min. application temperature °C -40
Electrical properties
Specific transitional resistance Ωcm > 10 11 DIN IEC 93
Surface resistance Ω > 10 11 DIN 53482
