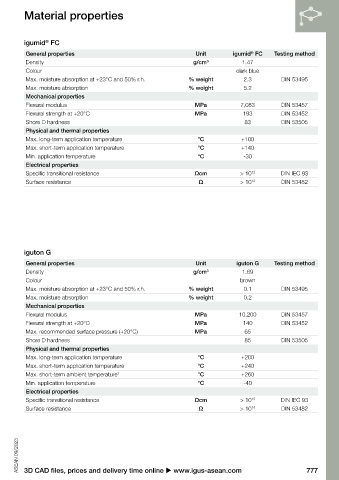

Material properties

®
igumid FC
General properties Unit igumid FC Testing method
®
Density g/cm 3 1.47
Colour dark blue
Max. moisture absorption at +23°C and 50% r.h. % weight 2.3 DIN 53495
Max. moisture absorption % weight 5.2
Mechanical properties
Flexural modulus MPa 7,083 DIN 53457
Flexural strength at +20°C MPa 193 DIN 53452
Shore D hardness 83 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +100
Max. short-term application temperature °C +140
Min. application temperature °C -30
Electrical properties
Specific transitional resistance Ωcm > 10 12 DIN IEC 93
Surface resistance Ω > 10 12 DIN 53482

iguton G

General properties Unit iguton G Testing method
Density g/cm 3 1.69
Colour brown
Max. moisture absorption at +23°C and 50% r.h. % weight 0.1 DIN 53495
Max. moisture absorption % weight 0.2
Mechanical properties
Flexural modulus MPa 10,200 DIN 53457
Flexural strength at +20°C MPa 140 DIN 53452
Max. recommended surface pressure (+20°C) MPa 65
Shore D hardness 85 DIN 53505
Physical and thermal properties
Max. long-term application temperature °C +200
Max. short-term application temperature °C +240
Max. short-term ambient temperature 1 °C +260
Min. application temperature °C -40
Electrical properties
Specific transitional resistance Ωcm > 10 15 DIN IEC 93
Surface resistance Ω > 10 14 DIN 53482
