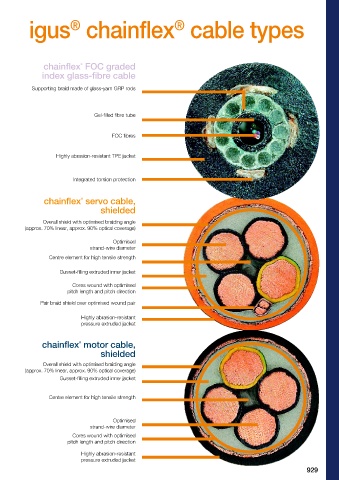

Sectional views through the igus chainflex cable types
®
®
Detailed structure of igus control, data, servo and motor cables
®
chainflex control cable, chainflex FOC graded
®
®
unshielded index glass-fibre cable
Individual bundles with optimised pitch length and Supporting braid made of glass-yarn GRP rods
pitch direction
Gel-filled fibre tube
Centre element for high tensile strength
FOC fibres
Strand wire diameter optimised for energy chains Highly abrasion-resistant TPE jacket
Highly abrasion-resistant, gusset-filling extruded
jacket Integrated torsion protection
chainflex control cable, chainflex servo cable,
®
®
shielded shielded
Overall shield with optimised braiding angle Overall shield with optimised braiding angle
(approx. 70% linear, approx. 90% optical coverage) (approx. 70% linear, approx. 90% optical coverage)
Optimised
Gusset-filling extruded inner jacket supports strand-wire diameter
bundles Centre element for high tensile strength
Centre element for high tensile strength
Gusset-filling extruded inner jacket
Cores wound with optimised
Centre element for high tensile strength in the pitch length and pitch direction
individual bundles
Pair braid shield over optimised wound pair
Pressure-extruded outer jacket Highly abrasion-resistant
pressure extruded jacket
chainflex data/sensor chainflex motor cable,
®
®
cable, shielded shielded
Overall shield with optimised braiding angle
Stranded elements with optimised pitch length
and pitch direction (approx. 70% linear, approx. 90% optical coverage)
Gusset-filling extruded inner jacket
Gusset-filling extruded inner jacket supports
bundles
Centre element for high tensile strength
Centre element for high tensile strength
Pair braided shield Optimised
strand-wire diameter
Overall shield with optimised braiding angle Cores wound with optimised
(approx. 70% linear, approx. 90% optical coverage) pitch length and pitch direction
Pressure-extruded outer jacket Highly abrasion-resistant
pressure extruded jacket
