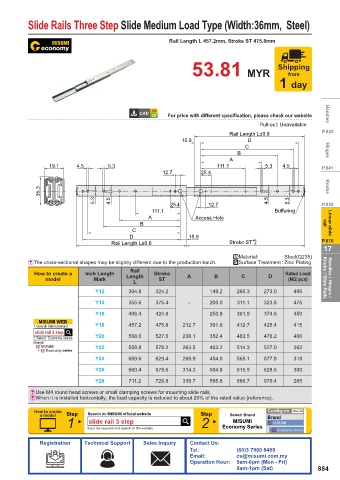

Page 887 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Three Step Slide Medium Load Type (Width:36mm, Steel)

Rail Length L 457.2mm, Stroke ST 475.8mm

Shipping
53.81 MYR from
1 day

For price with different specification, please check our website Handles
Pull-out: Unavailable
Rail Length L±0.8 P.825
15.9 D
C
B Hinges
A
19.1 4.5 5.3 111.1 5.3 4.5 P.841
12.7 25.4

35.3 Knobs
5.3 4.5 25.4 12.7 4.5 5.3 P.858
111.1 Buffering
A Access Hole
B rail Linear slide
C
D 15.9
+6
Rail Length L±0.8 Stroke ST -3 P.876
17
.Material: Steel(Q235)
& The cross-sectional shapes may be slightly different due to the production batch. 4Surface Treatment : Zinc Plating
Rail
How to create a Inch Length Length Stroke A B C D Rated Load
model Mark ST (N/2 pcs) Knobs / Slide Rails Handles / Hinges /
L
Y12 304.8 324.2 149.2 260.3 273.0 495
Y14 355.6 375.4 - 200.0 311.1 323.8 476
Y16 406.4 424.6 250.8 361.9 374.6 450
MISUMI WEB
1.Search this keyword Y18 457.2 475.8 212.7 301.6 412.7 425.4 415
slide rail 3 step
2.Select Economy series Y20 508.0 527.0 238.1 352.4 463.5 476.2 406
Brand
MISUMI Y22 558.8 578.2 263.5 403.2 514.3 527.0 362
Economy series
Y24 609.6 629.4 288.9 454.0 565.1 577.8 318
Y26 660.4 678.6 314.3 504.8 615.9 628.6 300
Y28 711.2 729.8 339.7 555.6 666.7 679.4 265
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 slide rail 3 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
