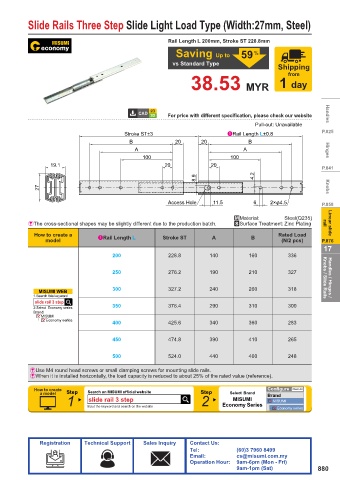

Page 883 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Three Step Slide Light Load Type (Width:27mm, Steel)

Rail Length L 200mm, Stroke ST 228.8mm
59 %
Saving Up to
vs Standard Type
Shipping
from
38.53 MYR 1 day

For price with different specification, please check our website Handles
Pull-out: Unavailable
Stroke ST±3 Rail Length L±0.8 P.825
B 20 20 B
A A Hinges
100 100
19.1 20 20
P.841
8.9 4.2
27 Knobs

Access Hole 11.5 6 2×П4.5 P.858

.Material: Steel(Q235)
& The cross-sectional shapes may be slightly different due to the production batch. 4Surface Treatment: Zinc Plating rail Linear slide
How to create a Rated Load
model Rail Length L Stroke ST A B (N/2 pcs) P.876
17
200 228.8 140 160 336

250 276.2 190 210 327 Knobs / Slide Rails Handles / Hinges /

300 327.2 240 260 318
MISUMI WEB
1.Search this keyword
slide rail 3 step
2.Select Economy series 350 376.4 290 310 300
Brand
MISUMI
Economy series
400 425.6 340 360 283
450 474.8 390 410 265

500 524.0 440 460 248

&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 slide rail 3 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
