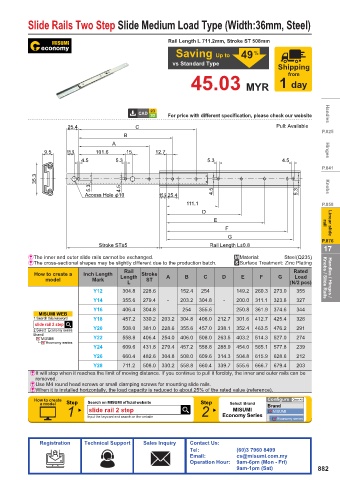

Page 885 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Two Step Slide Medium Load Type (Width:36mm, Steel)

Rail Length L 711.2mm, Stroke ST 508mm
49 %
Saving Up to
vs Standard Type
Shipping
from
45.03 MYR 1 day

For price with different specification, please check our website Handles

25.4 C Pull: Available
P.825
B
A
9.5 15.9 101.6 15 12.7 Hinges
4.5 5.3 5.3 4.5
P.841
35.3
5.3 4.5 Knobs
Access Hole П10 15.9 25.4 4.5 5.3
111.1 P.858
D
E rail Linear slide
F
G
P.876
Stroke ST±5 Rail Length L±0.8
17
& The inner and outer slide rails cannot be exchanged. .Material: Steel(Q235)
& The cross-sectional shapes may be slightly different due to the production batch. 4Surface Treatment : Zinc Plating
Rail Rated
How to create a Inch Length Length Stroke A B C D E F G Load
model Mark ST Knobs / Slide Rails Handles / Hinges /
L (N/2 pcs)
Y12 304.8 228.6 152.4 254 149.2 260.3 273.0 355
Y14 355.6 279.4 - 203.2 304.8 - 200.0 311.1 323.8 327
Y16 406.4 304.8 254 355.6 250.8 361.9 374.6 344
MISUMI WEB
1.Search this keyword Y18 457.2 330.2 203.2 304.8 406.0 212.7 301.6 412.7 425.4 326
slide rail 2 step
2.Select Economy series Y20 508.0 381.0 228.6 355.6 457.0 238.1 352.4 463.5 476.2 291
Brand
MISUMI Y22 558.8 406.4 254.0 406.0 508.0 263.5 403.2 514.3 527.0 274
Economy series
Y24 609.6 431.8 279.4 457.2 558.8 288.9 454.0 565.1 577.8 239
Y26 660.4 482.6 304.8 508.0 609.6 314.3 504.8 615.9 628.6 212
Y28 711.2 508.0 330.2 558.8 660.4 339.7 555.6 666.7 679.4 203
&It will stop when it reaches the limit of moving distance. If you continue to pull it forcibly, the inner and outer rails can be
removed.
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 slide rail 2 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
