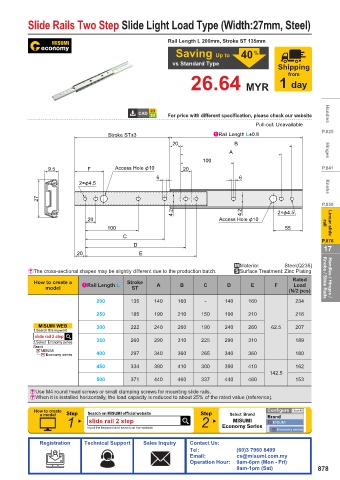

Page 881 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Two Step Slide Light Load Type (Width:27mm, Steel)

Rail Length L 200mm, Stroke ST 135mm
40 %
Saving Up to
vs Standard Type
Shipping
from
26.64 MYR 1 day

For price with different specification, please check our website Handles
Pull-out: Unavailable
P.825
Stroke ST±3 Rail Length L±0.8
20 B
A Hinges
100
9.5 F Access Hole П10 20 P.841
6 6
2×П4.5 Knobs

27
P.858
4.2 4.2 2×П4.5
20 Access Hole П10 rail
100 55 Linear slide
C
P.876
D 17
20 E
.Material: Steel(Q235)
& The cross-sectional shapes may be slightly different due to the production batch. 4Surface Treatment: Zinc Plating
Rated Knobs / Slide Rails Handles / Hinges /
How to create a Rail Length L Stroke A B C D E F Load
model ST
(N/2 pcs)
200 135 140 160 - 140 160 234
250 185 190 210 150 190 210 216
MISUMI WEB 300 222 240 260 190 240 260 62.5 207
1.Search this keyword
slide rail 2 step
2.Select Economy series 350 260 290 310 225 290 310 189
Brand
MISUMI
Economy series 400 297 340 360 265 340 360 180
450 334 390 410 300 390 410 162
142.5
500 371 440 460 337 440 460 153

&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 slide rail 2 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
