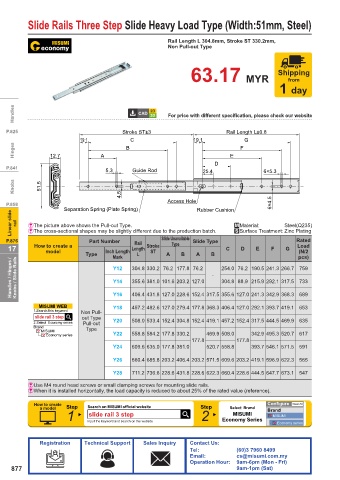

Page 880 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Three Step Slide Heavy Load Type (Width:51mm, Steel)

Rail Length L 304.8mm, Stroke ST 330.2mm,
Non Pull-out Type

Shipping
63.17 MYR from
1 day

Handles For price with different specification, please check our website

P.825 Stroke ST±3 Rail Length L±0.8
19.1 C 19.1 G
Hinges 12.7 A B E F

D
P.841
5.3 Guide Rod 25.4 6×5.3
Knobs 51.5
4.5
Access Hole
P.858 Separation Spring (Plate Spring) Rubber Cushion 6×4.5
Linear slide rail & The picture above shows the Pull-out Type. .Material: Steel(Q235)

& The cross-sectional shapes may be slightly different due to the production batch.
4Surface Treatment: Zinc Plating
P.876 Part Number Rail Slide Unavailable Slide Type Rated
Type
17 How to create a Type Inch Length Length Stroke A B A B C D E F G Load
model
(N/2
ST
L
pcs)
Mark
Handles / Hinges / Knobs / Slide Rails Y12 304.8 330.2 76.2 177.8 76.2 - 254.0 76.2 190.5 241.3 266.7 759
304.8 88.9 215.9 292.1 317.5
355.6 381.0 101.6 203.2 127.0
Y14
733
MISUMI WEB Y16 406.4 431.8 127.0 228.6 152.4 317.5 355.6 127.0 241.3 342.9 368.3 689
457.2 482.6 127.0 279.4 177.8 368.3 406.4 127.0 292.1 393.7 419.1
Y18
653
1.Search this keyword Non Pull-
slide rail 3 step out Type
2.Select Economy series Pull-out Y20 508.0 533.4 152.4 304.8 152.4 419.1 457.2 152.4 317.5 444.5 469.9 635
Brand Type
MISUMI
Economy series Y22 558.8 584.2 177.8 330.2 469.9 508.0 342.9 495.3 520.7 617
177.8 177.8
Y24 609.6 635.0 177.8 381.0 520.7 558.8 393.7 546.1 571.5 591
Y26 660.4 685.8 203.2 406.4 203.2 571.5 609.6 203.2 419.1 596.9 622.3 565
Y28 711.2 736.6 228.6 431.8 228.6 622.3 660.4 228.6 444.5 647.7 673.1 547
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 slide rail 3 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
