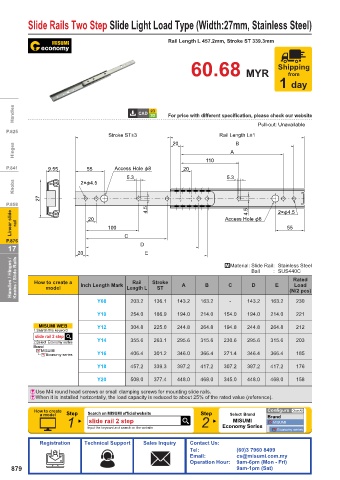

Page 882 - MiSUMi FA Mechanical Components Economy Series

Slide Rails Two Step Slide Light Load Type (Width:27mm, Stainless Steel)

Rail Length L 457.2mm, Stroke ST 339.3mm

Shipping
60.68 MYR from
1 day

Handles For price with different specification, please check our website

Pull-out: Unavailable
P.825
Stroke ST±3 Rail Length L±1
Hinges 20 A B

110
P.841 9.55 55 Access Hole П8 20
5.3 5.3
Knobs 2×П4.5

27
P.858 4.5 4.5 2×П4.5
Linear slide rail 20 100 Access Hole П8 55

P.876 C D
17
20 E
Handles / Hinges / Knobs / Slide Rails How to create a Inch Length Mark Length L Stroke A B .Material: Slide Rail : Stainless Steel
: SUS440C
Ball
Rated
Rail
C
D
Load
E
model
ST
Y08 203.2 136.1 143.2 163.2 - 143.2 163.2 (N/2 pcs)
230
Y10 254.0 186.9 194.0 214.0 154.0 194.0 214.0 221
MISUMI WEB Y12 304.8 225.0 244.8 264.8 194.8 244.8 264.8 212
1.Search this keyword
slide rail 2 step
2.Select Economy series Y14 355.6 263.1 295.6 315.6 230.6 295.6 315.6 203
Brand
MISUMI
Economy series Y16 406.4 301.2 346.0 366.4 271.4 346.4 366.4 185
Y18 457.2 339.3 397.2 417.2 307.2 397.2 417.2 176
Y20 508.0 377.4 448.0 468.0 345.0 448.0 468.0 158
&Use M4 round head screws or small clamping screws for mounting slide rails.
&When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 slide rail 2 step 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
