dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
®
technology technology

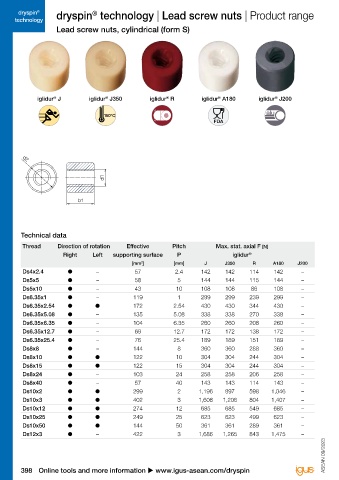

Lead screw nuts, cylindrical (form S)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur J350 iglidur R iglidur A180 iglidur J200 R: Right-hand thread
®
®
®
®
®
dryspin ® technology iglidur ® material Form S Direction of rotation Metric Outer Ø [mm] Length [mm] Thread type Diameter [mm]
L: Left-hand thread

Pitch

J High efficiency at all speeds Standard
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
J200 The specialist on hard anodised aluminium Optional

Technical data Dimensions [mm]
Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) b1 156) Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
[mm ] [mm] J J350 R A180 J200 J J350 R A180 J200
2
Ds4x2.4 ● – 57 2.4 142 142 114 142 – 4 14 13 2.74 2.65 2.55 2.68 – DST- SRM-131315DS4X2.4
Ds5x5 ● – 58 5 144 144 115 144 – 5 14 13 2.6 2.5 2.4 2.6 – DST- SRM-1413DS5X5
Ds5x10 ● – 43 10 108 108 86 108 – 5 14 13 2.6 2.5 2.4 2.6 – DST- SRM-1413DS5X10 New
Ds6.35x1 ● – 119 1 299 299 239 299 – 6.35 14 13 2.4 2.3 2.2 2.3 – DST- SRM-1413DS6.35X1 New
Ds6.35x2.54 ● ● 172 2.54 430 430 344 430 – 6.35 14 13 2.4 2.3 2.2 2.3 – DST- S M-1413DS6.35X2.54
Ds6.35x5.08 ● – 135 5.08 338 338 270 338 – 6.35 14 13 2.4 2.3 2.2 2.3 – DST- SRM-1413DS6.35X5.08
Ds6.35x6.35 ● – 104 6.35 260 260 208 260 – 6.35 14 13 2.4 2.3 2.2 2.3 – DST- SRM-1413DS6.35X6.35 New
Ds6.35x12.7 ● – 69 12.7 172 172 138 172 – 6.35 14 13 2.4 2.3 2.2 2.3 – DST- SRM-1413DS6.35X12.7
Ds6.35x25.4 ● – 76 25.4 189 189 151 189 – 6.35 14 13 2.4 2.3 2.2 2.3 – DST- SRM-1413DS6.35X25.4
Ds8x8 ● – 144 8 360 360 288 360 – 8 18 12 3.7 3.5 3.4 3.6 – DST- SRM-1812DS8X8 New
Ds8x10 ● ● 122 10 304 304 244 304 – 8 18 12 3.7 3.5 3.4 3.6 – DST- S M-1812DS8X10
Ds8x15 ● ● 122 15 304 304 244 304 – 8 18 12 3.7 3.5 3.4 3.6 – DST- S M-1812DS8X15
Ds8x24 ● – 103 24 258 258 206 258 – 8 18 12 3.7 3.5 3.4 3.6 – DST- SRM-1812DS8X24
Ds8x40 ● – 57 40 143 143 114 143 – 8 18 12 3.7 3.5 3.4 3.6 – DST- SRM-1812DS8X40 New
Ds10x2 ● ● 299 2 1,196 897 598 1,046 – 10 22 20 9.0 8.7 8.4 8.8 – DST- S M-2220DS10X2 New
Ds10x3 ● ● 402 3 1,608 1,206 804 1,407 – 10 22 20 9.0 8.7 8.4 8.8 – DST- S M-2220DS10X3 New
Ds10x12 ● ● 274 12 685 685 549 685 – 10 22 20 9.0 8.7 8.4 8.8 – DST- S M-2220DS10X12
Ds10x25 ● ● 249 25 623 623 499 623 – 10 22 20 9.0 8.7 8.4 8.8 – DST- S M-2220DS10X25
Ds10x50 ● ● 144 50 361 361 289 361 – 10 22 20 9.0 8.7 8.4 8.8 – DST- S M-2220DS10X50
13.9
–
14.6
26
12
Ds12x3 ● – 422 3 1,686 1,265 843 1,475 – 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium) DST- SRM-2624DS12X3
14.4
14.9
24
