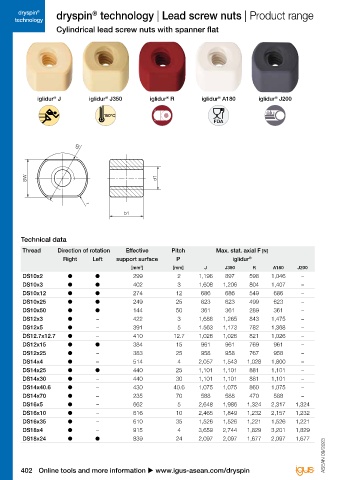

dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
technology technology
Cylindrical lead screw nuts with spanner flat
Order key

Type SW d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur J350 iglidur R iglidur A180 iglidur J200 R: Right-hand thread
®
®
®
®
®
dryspin ® technology iglidur ® material Direction of rotation Spanner flat [mm] Diameter [mm]
L: Left-hand thread

d2 Form S Metric Outer Ø [mm] Length [mm] Thread type Pitch

J High efficiency at all speeds Standard
SW d1 J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
J200 The specialist on hard anodised aluminium Optional
r
b1

Technical data Dimensions [mm]
Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) b1 156) SW Weight [g] Part No.
Right Left support surface P iglidur ® iglidur ®
[mm ] [mm] J J350 R A180 J200 J J350 R A180 J200
2
DS10x2 ● ● 299 2 1,196 897 598 1,046 – 10 22 20 17 6.65 6.42 6.20 6.51 – DST- S M-172220DS10X2 New
DS10x3 ● ● 402 3 1,608 1,206 804 1,407 – 10 22 20 17 6.65 6.42 6.20 6.51 – DST- S M-172220DS10X3 New
DS10x12 ● ● 274 12 686 686 549 686 – 10 22 20 17 6.65 6.42 6.20 6.51 – DST- S M-172220DS10X12
DS10x25 ● ● 249 25 623 623 499 623 – 10 22 20 17 6.65 6.42 6.20 6.51 – DST- S M-172220DS10X25
DS10x50 ● ● 144 50 361 361 289 361 – 10 22 20 17 6.65 6.42 6.20 6.51 – DST- S M-172220DS10X50
DS12x3 ● – 422 3 1,686 1,265 843 1,475 – 12 26 24 19 10.90 10.53 10.17 10.68 – DST- SRM-192624DS12X3 New
DS12x5 ● – 391 5 1.563 1,173 782 1,368 – 12 26 24 19 10.90 10.53 10.17 10.68 – DST- SRM-192624DS12X5
DS12.7x12.7 ● – 410 12.7 1,026 1,026 821 1,026 – 12.7 26 24 19 9.93 9.59 9.26 9.73 – DST- SRM-192624DS12.7X12.7 New
DS12x15 ● ● 384 15 961 961 769 961 – 12 26 24 19 10.90 10.53 10.17 10.68 – DST- S M-192624DS12X15
DS12x25 ● – 383 25 958 958 767 958 – 12 26 24 19 10.90 10.53 10.17 10.68 – DST- SRM-192624DS12X25
DS14x4 ● – 514 4 2,057 1,543 1,028 1,800 – 14 30 27 25 16.05 15.51 14.97 15.73 – DST- SRM-253027DS14X4 New
DS14x25 ● ● 440 25 1,101 1,101 881 1,101 – 14 30 27 25 16.05 15.51 14.97 15.73 – DST- S M-253027DS14X25
DS14x30 ● – 440 30 1,101 1,101 881 1,101 – 14 30 27 25 16.05 15.51 14.97 15.73 – DST- SRM-253027DS14X30
DS14x40.6 ● – 430 40.6 1,075 1,075 860 1,075 – 14 30 32 25 19.02 18.39 17.75 18.64 – DST- SRM-253027DS14X40.6
DS14x70 ● – 235 70 588 588 470 588 – 14 30 32 25 19.02 18.39 17.75 18.64 – DST- SRM-253027DS14X70 New
DS16x5 ● – 662 5 2,648 1,986 1,324 2,317 1,324 16 36 36 27 33.03 31.92 30.81 32.36 – DST- SRM-273632DS16X5 New
DS16x10 ● – 616 10 2,465 1,849 1,232 2,157 1,232 16 36 36 27 33.03 31.92 30.81 32.36 – DST-JSRM-273632DS16X10 New
DS16x35 ● – 610 35 1,526 1,526 1,221 1,526 1,221 16 36 36 27 33.03 31.92 30.81 32.36 – DST- SRM-273632DS16X35
DS18x4 ● – 915 4 3,659 2,744 1,829 3,201 1,829 18 40 36 27 40.11 38.76 37.41 39.30 46.30 DST- SRM-274036DS18X4 New
DS18x24 ● ● 839 24 2,097 2,097 1,677 2,097 1,677 18 40 36 27 40.11 38.76 37.41 39.30 46.30 DST- S M-274036DS18X24
ASEAN 09/2023 ASEAN 09/2023 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)

402 Online tools and more information u www.igus-asean.com/dryspin 3D CAD files, prices and delivery time online u www.igus-asean.com/dryspin 403
