dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
technology technology

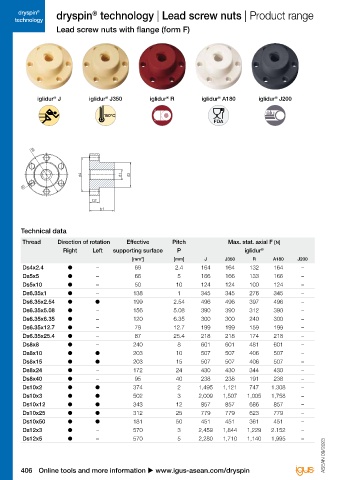

Lead screw nuts with flange (form F)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur J350 iglidur R iglidur A180 iglidur J200 R: Right-hand thread
®
®
®
®
®
dryspin ® technology iglidur ® material Form F Direction of rotation Metric Outer Ø [mm] Length [mm] Thread type Diameter [mm]
L: Left-hand thread

Pitch

J High efficiency at all speeds Standard 24hrs
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
J200 The specialist on hard anodised aluminium Optional

Technical data Dimensions [mm]
Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) d3 d4 d5 b1 156) b2 Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
[mm ] [mm] J J350 R A180 J200 J J350 R A180 J200
2
Ds4x2.4 ● – 69 2.4 164 164 132 164 – 4.0 13 25 19 3.2 15 5 5.4 5.2 5.0 5.3 – DST- FRM-1315DS4X2.4
Ds5x5 ● – 66 5 166 166 133 166 – 5.0 13 25 19 3.2 15 5 5.2 5.0 4.9 5.1 – DST- FRM-1315DS5X5
Ds5x10 ● – 50 10 124 124 100 124 – 5.0 13 25 19 3.2 15 5 5.2 5.0 4.9 5.1 – DST- FRM-1315DS5X10 New
Ds6.35x1 ● – 138 1 345 345 276 345 – 6.35 13 25 19 3.2 15 5 4.9 4.8 4.6 4.8 – DST- F M-1315DS6.35X1 New
Ds6.35x2.54 ● ● 199 2.54 496 496 397 496 – 6.35 13 25 19 3.2 15 5 4.9 4.8 4.6 4.8 – DST- F M-1315DS6.35X2.54
Ds6.35x5.08 ● – 156 5.08 390 390 312 390 – 6.35 13 25 19 3.2 15 5 4.9 4.8 4.6 4.8 – DST- FRM-1315DS6.35X5.08
Ds6.35x6.35 ● – 120 6.35 300 300 240 300 – 6.35 13 25 19 3.2 15 5 4.9 4.8 4.6 4.8 – DST- F M-1315DS6.35X6.35 New
Ds6.35x12.7 ● – 79 12.7 199 199 159 199 – 6.35 13 25 19 3.2 15 5 4.9 4.8 4.6 4.8 – DST- FRM-1315DS6.35X12.7
Ds6.35x25.4 ● – 87 25.4 218 218 174 218 – 6.35 13 25 19 3.2 15 5 4.9 4.8 4.6 4.8 – DST- FRM-1315DS6.35X25.4
Ds8x8 ● – 240 8 601 601 481 601 – 8 20 34 28 4 20 5 12.3 11.9 11.5 12.0 – DST- F M-2020DS8X8 New
Ds8x10 ● ● 203 10 507 507 406 507 – 8 20 34 28 4 20 5 12.3 11.9 11.5 12.0 – DST- F M-2020DS8X10
Ds8x15 ● ● 203 15 507 507 406 507 – 8 20 34 28 4 20 5 12.3 11.9 11.5 12.0 – DST- F M-2020DS8X15
Ds8x24 ● – 172 24 430 430 344 430 – 8 20 34 28 4 20 5 12.3 11.9 11.5 12.0 – DST- FRM-2020DS8X24
Ds8x40 ● – 95 40 238 238 191 238 – 8 20 34 28 4 20 5 12.3 11.9 11.5 12.0 – DST- FRM-2020DS8X40 New
Ds10x2 ● ● 374 2 1,495 1,121 747 1.308 – 10 25 42 34 5 25 10 28.7 27.7 26.8 28.1 – DST- F M-2525DS10X2 New
Ds10x3 ● ● 502 3 2,009 1,507 1,005 1,758 – 10 25 42 34 5 25 10 28.7 27.7 26.8 28.1 – DST- F M-2525DS10X3 New
Ds10x12 ● ● 343 12 857 857 686 857 – 10 25 42 34 5 25 10 28.7 27.7 26.8 28.1 – DST- F M-2525DS10X12
Ds10x25 ● ● 312 25 779 779 623 779 – 10 25 42 34 5 25 10 28.7 27.7 26.8 28.1 – DST- F M-2525DS10X25
Ds10x50 ● ● 181 50 451 451 361 451 – 10 25 42 34 5 25 10 28.7 27.7 26.8 28.1 – DST- F M-2525DS10X50
Ds12x3 ● – 570 3 2,459 1,844 1,229 2.152 – 12 28 48 38 6 35 12 47.6 46.0 44.4 46.6 – DST- FRM-2835DS12X3 New
Ds12x5 ● – 570 5 2,280 1,710 1,140 1,995 – 12 28 48 38 6 35 12 47.6 46.0 44.4 46.6 – DST- FRM-2835DS12X5
ASEAN 09/2023 ASEAN 09/2023 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
