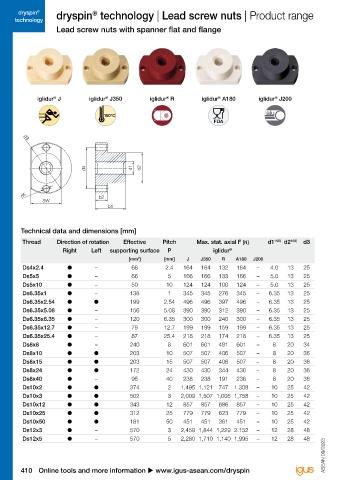

       dryspin       dryspin  technology | Lead screw nuts | Product range                                                                                                                                                       dryspin
              ®
                                                                                                                                                                                                                                        ®
      technology                                                                                                                                                                                                                technology
                     Lead screw nuts with spanner flat and flange
                                                                                                                                       Order key


                                                                                                                                 Type                   SW d2   b1  Thread



                                                                                                                                                                                                              Options:
                                                                                                                                                                                                              Direction of rotation
              iglidur  J        iglidur  J350         iglidur  R        iglidur  A180       iglidur  J200                                                                                                     R: Right-hand thread
                    ®
                                                                              ®
                                                                                                  ®
                                      ®
                                                           ®
                                                                                                                                    dryspin ®  technology  iglidur ®  material  Form F  Direction of rotation  Metric  Spanner flat [mm]  Outer Ø [mm]  Length [mm]  Thread type  Diameter [mm]
                                                                                                                                                                                                              L: Left-hand thread

                                                                                                                                                                                Pitch



                                                                                                                                                   J       High efficiency at all speeds                      Standard
                                                                                                                                                   J350    For temperatures up to +150°C                      Optional
                                                                                                                                                   R       Vibration-dampening and vibration-inhibiting       Optional
                                                                                                                                                   A180    FDA-compliant for the food and pharmaceutical industries Optional
                                                                                                                                                   J200    The specialist on hard anodised aluminium          Optional




        Technical data and dimensions [mm]                                                                                       Dimensions [mm]
         Thread      Direction of rotation  Effective     Pitch       Max. stat. axial F [N]   d1 156)  d2 156)  d3                d4    d5   b1 156)  b2  SW                Weight [g]            Part No.
                       Right     Left   supporting surface  P               iglidur ®                                                                                         iglidur ®
                                              [mm ]        [mm]    J    J350   R    A180  J200                                                                     J     J350    R    A180   J200
                                                 2
         Ds4x2.4         ●        –            66          2.4   164    164   132   164    –    4.0   13    25                     19    3.2   15     5     13    4.1    3.98  3.84   4.04    –    DST-   FRM-131315DS4X2.4
         Ds5x5           ●        –            66           5    166    166   133   166    –    5.0   13    25                     19    3.2   15     5     13    4.0    3.8    3.7    3.9    –    DST-   FRM-131315DS5X5
         Ds5x10          ●        –            50          10    124    124   100   124    –    5.0   13    25                     19    3.2   15     5     13    4.0    3.8    3.7    3.9    –    DST-   FRM-131315DS5X10         New
         Ds6.35x1        ●        –            138          1    345    345   276   345    –   6.35   13    25                     19    3.2   15     5     13    4.9    4.8    4.6    4.8    –    DST-   FRM-131315DS6.35X1       New
         Ds6.35x2.54     ●        ●            199         2.54  496    496   397   496    –   6.35   13    25                     19    3.2   15     5     13    3.7    3.6    3.4    3.6    –    DST-   F   M-131315DS6.35X2.54
         Ds6.35x5.08     ●        –            156         5.08  390    390   312   390    –   6.35   13    25                     19    3.2   15     5     13    3.7    3.6    3.4    3.6    –    DST-   FRM-131315DS6.35X5.08
         Ds6.35x6.35     ●        –            120         6.35  300    300   240   300    –   6.35   13    25                     19    3.2   15     5     13    3.7    3.6    3.4    3.6    –    DST-   FRM-131315DS6.35X6.35 New
         Ds6.35x12.7     ●        –            79          12.7  199    199   159   199    –   6.35   13    25                     19    3.2   15     5     13    3.7    3.6    3.4    3.6    –    DST-   FRM-131315DS6.35X12.7
         Ds6.35x25.4     ●        –            87          25.4  218    218   174   218    –   6.35   13    25                     19    3.2   15     5     13    3.7    3.6    3.4    3.6    –    DST-   FRM-131315DS6.35X25.4
         Ds8x8           ●        –            240          8    601    601   481   601    –     8    20    34                     28    4     20     5     20    12.3   11.9  11.5   12.0    –    DST-   FRM-202020DS8X8          New
         Ds8x10          ●        ●            203         10    507    507   406   507    –     8    20    36                     28    4     20     8     20    12.7   12.3  11.8   12.4    –    DST-   F   M-202020DS8X10
         Ds8x15          ●        ●            203         15    507    507   406   507    –     8    20    36                     28    4     20     8     20    12.7   12.3  11.8   12.4    –    DST-   F   M-202020DS8X15
         Ds8x24          ●        ●            172         24    430    430   344   430    –     8    20    36                     28    4     20     8     20    12.7   12.3  11.8   12.4    –    DST-   F   M-202020DS8X24
         Ds8x40          ●        –            95          40    238    238   191   238    –     8    20    36                     28    4     20     8     20    12.7   12.3  11.9   12.5    –    DST-   FRM-202020DS8X40         New
         Ds10x2          ●        ●            374          2    1,495 1,121  747  1.308   –    10    25    42                     34    5     25    10     25    28.7   27.7  26.8   28.1    –    DST-   F   M-252525DS10X2       New
         Ds10x3          ●        ●            502          3    2,009 1,507 1,005 1,758   –    10    25    42                     34    5     25    10     25    23.7   22.9  22.1   23.2    –    DST-   F   M-252525DS10X3       New
         Ds10x12         ●        ●            343         12    857    857   686   857    –    10    25    42                     34    5     25    10     25    23.7   22.9  22.1   23.2    –    DST-   F   M-252525DS10X12
         Ds10x25         ●        ●            312         25    779    779   623   779    –    10    25    42                     34    5     25    10     25    23.7   22.9  22.1   23.2    –    DST-   F   M-252525DS10X25
         Ds10x50         ●        ●            181         50    451    451   361   451    –    10    25    42                     34    5     25    10     25    23.7   22.9  22.1   23.2    –    DST-   F   M-252525DS10X50
         Ds12x3          ●        –            570          3    2,459 1,844 1,229 2.152   –    12    28    48                     38    6     35    12     28    47.6   46.0  44.4   46.6    –    DST-   FRM-282835DS12X3         New
         Ds12x5          ●        –            570          5    2,280 1,710 1,140 1,995   –    12    28    48                     38    6     35    12     28    39.2   37.9  36.6   38.4    –    DST-   FRM-282835DS12X5
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
