dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
technology technology

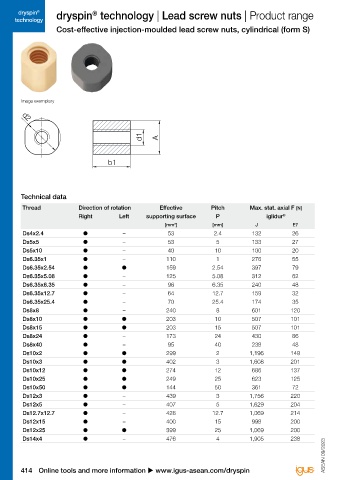

Cost-effective injection-moulded lead screw nuts, cylindrical (form S)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
dryspin ® technology iglidur ® material Form S Direction of rotation Metric Thread: cut Thread type Diameter [mm] Pitch
Image exemplary R: Right-hand thread
L: Left-hand thread

Type

J High efficiency at all speeds Standard 24hrs
E7 For high speeds and low loads Optional

Technical data Dimensions [mm]

Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) A b1 156) Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
[mm ] [mm] J E7 J E7
2
Ds4x2.4 ● – 53 2.4 132 26 4 12 11.0 12 1.80 1.27 DST- SRM-C-01-DS4X2.4
Ds5x5 ● – 53 5 133 27 5 12 11.0 12 1.67 1.18 DST- SRM-C-01-DS5X5
Ds5x10 ● – 40 10 100 20 5 12 11.0 12 1.67 1.18 DST- SRM-C-01-DS5X10 New
Ds6.35x1 ● – 110 1 276 55 6.35 12 11.0 12 1.46 1.03 DST- SRM-C-01-DS6.35X1 New
Ds6.35x2.54 ● ● 159 2.54 397 79 6.35 12 11.0 12 1.46 1.03 DST- S M-C-01-DS6.35X2.54
Ds6.35x5.08 ● – 125 5.08 312 62 6.35 12 11.0 12 1.46 1.03 DST- SRM-C-01-DS6.35X5.08
Ds6.35x6.35 ● – 96 6.35 240 48 6.35 12 11.0 12 1.46 1.03 DST- SRM-C-01-DS6.35X6.35 New
Ds6.35x12.7 ● – 64 12.7 159 32 6.35 12 11.0 12 1.46 1.03 DST- SRM-C-01-DS6.35X12.7
Ds6.35x25.4 ● – 70 25.4 174 35 6.35 12 11.0 12 1.46 1.03 DST- SRM-C-01-DS6.35X25.4
Ds8x8 ● – 240 8 601 120 8 20 18.0 20 7.86 5.54 DST- SRM-C-01-DS8X8 New
Ds8x10 ● ● 203 10 507 101 8 20 18.0 20 7.86 5.54 DST- S M-C-01-DS8X10
Ds8x15 ● ● 203 15 507 101 8 20 18.0 20 7.86 5.54 DST- S M-C-01-DS8X15
Ds8x24 ● – 173 24 430 86 8 20 18.0 20 7.86 5.54 DST- SRM-C-01-DS8X24
Ds8x40 ● – 95 40 238 48 8 20 18.0 20 7.86 5.54 DST- SRM-C-01-DS8X40 New
Ds10x2 ● ● 299 2 1,196 149 10 20 18.0 20 7.02 4.95 DST- S M-C-01-DS10X2 New
Ds10x3 ● ● 402 3 1,608 201 10 20 18.0 20 7.02 4.95 DST- S M-C-01-DS10X3 New
Ds10x12 ● ● 274 12 686 137 10 20 18.0 20 7.02 4.95 DST- S M-C-01-DS10X12
Ds10x25 ● ● 249 25 623 125 10 20 18.0 20 7.02 4.95 DST- S M-C-01-DS10X25
Ds10x50 ● ● 144 50 361 72 10 20 18.0 20 7.02 4.95 DST- S M-C-01-DS10X50
Ds12x3 ● – 439 3 1,756 220 12 24 22.6 25 12.64 8.91 DST- SRM-C-01-DS12X3 New
Ds12x5 ● – 407 5 1,629 204 12 24 22.6 25 12.64 8.91 DST- SRM-C-01-DS12X5
Ds12.7x12.7 ● – 428 12.7 1,069 214 12.7 24 22.6 25 12.13 8.55 DST- SRM-C-01-DS12.7X12.7
Ds12x15 ● – 400 15 998 200 12 24 22.6 25 12.64 8.91 DST- SRM-C-01-DS12X15
Ds12x25 ● ● 399 25 1,069 200 12 26 22.6 25 12.64 8.91 DST- S M-C-01-DS12X25 New
Ds14x4 ● – 476 4 1,905 238 14 24 22.6 25 11.00 12.12 DST- SRM-C-01-DS14X4 New
ASEAN 09/2023 ASEAN 09/2023 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
