dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
®
technology technology

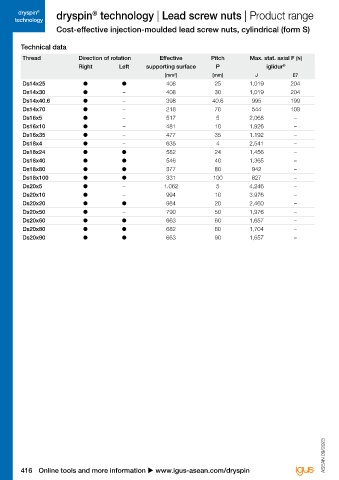

Cost-effective injection-moulded lead screw nuts, cylindrical (form S)
Technical data Dimensions [mm]
Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) A b1 156) Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
2
[mm ] [mm] J E7 J E7
Ds14x25 ● ● 408 25 1,019 204 14 24 22.6 25 11.12 12.12 DST- S M-C-01-DS14X25
Ds14x30 ● – 408 30 1,019 204 14 24 22.6 25 11.12 12.12 DST- SRM-C-01-DS14X30
Ds14x40.6 ● – 398 40.6 995 199 14 28 22.6 25 17.20 12.12 DST- SRM-C-01-DS14X40.6 New
Ds14x70 ● – 218 70 544 109 14 28 22.6 25 17.20 12.12 DST- SRM-C-01-DS14X70 New
Ds16x5 ● – 517 5 2,068 – 16 28 26.2 25 15.00 – DST- JSRM-C-01-DS16X5 New
Ds16x10 ● – 481 10 1,926 – 16 28 26.2 25 15.45 – DST- JSRM-C-01-DS16X10 New
Ds16x35 ● – 477 35 1.192 – 16 28 26.2 25 15.45 – DST- JSRM-C-01-DS16X35
Ds18x4 ● – 635 4 2,541 – 18 28 26.2 25 13.00 – DST- JSRM-C-01-DS18X4 New
Ds18x24 ● ● 582 24 1,456 – 18 28 26.2 25 13.46 – DST- JS M-C-01-DS18X24
Ds18x40 ● ● 546 40 1,365 – 18 28 26.2 25 13.46 – DST- JS M-C-01-DS18X40
Ds18x80 ● ● 377 80 942 – 18 28 26.2 25 13.46 – DST- JS M-C-01-DS18X80 New
Ds18x100 ● ● 331 100 827 – 18 28 26.2 25 13.46 – DST- JS M-C-01-DS18X100 New
Ds20x5 ● – 1.062 5 4,246 – 20 32 26.2 40 47.53 – DST- JSRM-C-01-DS20X5 New
Ds20x10 ● – 994 10 3.976 – 20 32 29.0 40 47.53 – DST- JSRM-C-01-DS20X10 New
Ds20x20 ● ● 984 20 2,460 – 20 32 29.0 40 47.54 – DST- JS M-C-01-DS20X20 New
Ds20x50 ● – 790 50 1,976 – 20 32 29.0 40 47.54 – DST- JSRM-C-01-DS20X50 New
Ds20x60 ● ● 663 60 1,657 – 20 32 29.0 40 47.54 – DST- JS M-C-01-DS20X60 New
Ds20x80 ● ● 682 80 1,704 – 20 32 29.0 40 47.54 – DST- JS M-C-01-DS20X80 New
Ds20x90 ● ● 663 90 1,657 – 20 32 29.0 40 47.54 – DST- JS M-C-01-DS20X90 New
156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
