dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
®
technology technology

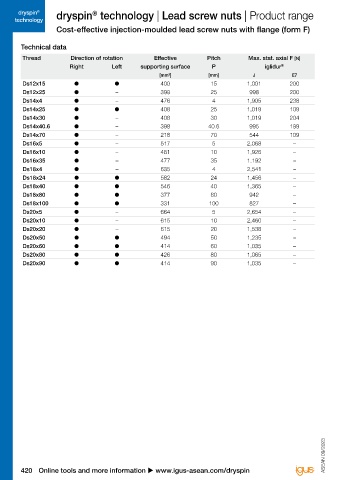

Cost-effective injection-moulded lead screw nuts with flange (form F)
Technical data Dimensions [mm]

Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) A B C d5 b1 156) b2 Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
[mm ] [mm] J E7 J E7
2
Ds12x15 ● ● 400 15 1,001 200 12 24 22.6 24 34 5.0 25 6.0 15.89 11.20 DST- F M-C-01-DS12X15
Ds12x25 ● – 399 25 998 200 12 24 22.6 24 34 5.0 25 6.0 15.89 11.20 DST- FRM-C-01-DS12X25 New
Ds14x4 ● – 476 4 1,905 238 14 24 22.6 24 34 5.0 25 6.0 14.37 10.13 DST- FRM-C-01-DS14X4 New
Ds14x25 ● ● 408 25 1,019 109 14 24 22.6 24 34 5.0 25 6.0 14.37 10.13 DST- F M-C-01-DS14X25
Ds14x30 ● – 408 30 1,019 204 14 24 22.6 24 34 5.0 25 6.0 14.37 10.13 DST- FRM-C-01-DS14X30
Ds14x40.6 ● – 398 40.6 995 199 14 24 22.6 24 34 5.0 25 6.0 14.37 10.13 DST- FRM-C-01-DS14X40.6 New
Ds14x70 ● – 218 70 544 109 14 24 22.6 24 34 5.0 25 6.0 14.37 10.13 DST- FRM-C-01-DS14X70 New
Ds16x5 ● – 517 5 2,068 – 16 28 25.5 27 38 6.0 25 6.5 19.42 – DST- JFRM-C-01-DS16X5 New
Ds16x10 ● – 481 10 1,926 – 16 28 25.5 27 38 6.0 25 6.5 27.15 – DST- JFRM-C-01-DS16X10 New
Ds16x35 ● – 477 35 1.192 – 16 28 25.5 27 38 6.0 25 6.5 37.01 – DST- JFRM-C-01-DS16X35
Ds18x4 ● – 635 4 2,541 – 18 28 25.5 27 38 6.0 25 6.5 47.01 – DST- JFRM-C-01-DS18X4 New
Ds18x24 ● ● 582 24 1,456 – 18 28 25.5 27 38 6.0 25 6.5 61.13 – DST- JF M-C-01-DS18X24
Ds18x40 ● ● 546 40 1,365 – 18 28 25.5 27 38 6.0 25 6.5 77.38 – DST- JF M-C-01-DS18X40
Ds18x80 ● ● 377 80 942 – 18 28 25.5 27 38 6.0 25 6.5 95.76 – DST- JF M-C-01-DS18X80 New
Ds18x100 ● ● 331 100 827 – 18 28 25.5 27 38 6.0 25 6.5 116.28 – DST- JF M-C-01-DS18X100 New
Ds20x5 ● – 664 5 2,654 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JFRM-C-01-DS20X5 New
Ds20x10 ● – 615 10 2,460 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JFRM-C-01-DS20X10 New
Ds20x20 ● – 615 20 1,538 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JFRM-C-01-DS20X20 New
Ds20x50 ● ● 494 50 1,235 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JF M-C-01-DS20X50 New
Ds20x60 ● ● 414 60 1,035 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JF M-C-01-DS20X60 New
Ds20x80 ● ● 426 80 1,065 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JF M-C-01-DS20X80 New
Ds20x90 ● ● 414 90 1,035 – 20 32 29.0 30 42 6.0 25 8.0 23.69 – DST- JF M-C-01-DS20X90 New
156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
