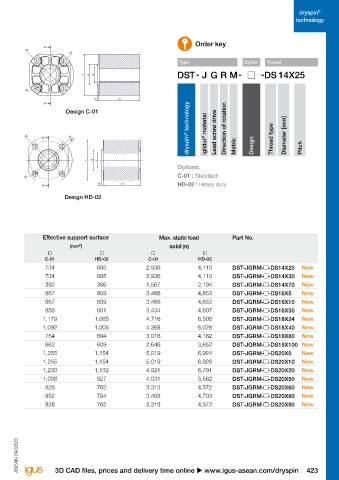

Page 425 - IGUS Linear

®
dryspin dryspin | Special geometries | Product range New dryspin
®
®
technology technology
dryspin heavy duty lead screw nuts
®
Order key
A
Robust and with conventional connection sizes d2 d3
The new type of the DST-JGRM series with optimised Type Option Thread
injection-moulded design is the robust alternative to a flange
lead screw nut. It is characterised by connection sizes and A d4 d1
pitches that are identical to those of standard ball screw
d5
nuts. The special design enables easy installation and is
b2 b1
especially suitable for radial loads. Also available as "heavy A
duty" version with stainless steel plate Design C-01
Injection moulded lead screw nut blank incl. ● Connecting dimensions and pitches identical to
machined cut thread conventional ball screws dryspin ® technology Direction of rotation
You can find more information at: ● Lubrication- and maintenance-free with high- d2 A d3 47 iglidur ® material Lead screw drive Thread type Diameter [mm]
www.igus-asean.com/ball-bearings-screws-vs-dryspin performance polymers iglidur J Metric Design Pitch
®
● Cost-effective through plastic injection moulding
● Robust and strong design A d4 d1 Options:
● Available in 2 installation sizes for threads in Ø 14/16 C-01 : Standard
and 18/20 d5
● Heavy-duty version with 30% higher max. static axial A b2 b1 HD-02 : Heavy duty
loads Design HD-02

Technical data and dimensions [mm]
Thread d1 d2 d3 d4 d5 b1 b1 b2 A Effective support surface Max. static load Part No.
Form [mm²] axial [N]

d1 x P C-01 HD-02 C-01 HD-02 C-01 HD-02
Ds14x25 14 48 38 20 5.3 45 42 2 40 734 685 2,936 4,110 DST-JGRM- -DS14X25 New
Ds14x30 14 48 38 20 5.3 45 42 2 40 734 685 2,936 4,110 DST-JGRM- -DS14X30 New
Ds14x70 14 48 38 20 5.3 45 42 2 40 392 366 1,567 2,194 DST-JGRM- -DS14X70 New
Ds16x5 16 48 38 20 5.3 45 42 2 40 867 809 3,466 4,853 DST-JGRM- -DS16X5 New
Ds16x10 16 48 38 20 5.3 45 42 2 40 867 809 3,466 4,853 DST-JGRM- -DS16X10 New
Ds16x35 16 48 38 20 5.3 45 42 2 40 858 801 3,434 4,807 DST-JGRM- -DS16X35 New
Ds18x24 18 58 47 26 6.3 50 46 2 50 1,179 1,085 4,716 6,508 DST-JGRM- -DS18X24 New
Ds18x40 18 58 47 26 6.3 50 46 2 50 1,092 1,005 4,368 6,028 DST-JGRM- -DS18X40 New
Ds18x80 18 58 47 26 6.3 50 46 2 50 754 694 3,016 4,162 DST-JGRM- -DS18X80 New
Ds18x100 18 58 47 26 6.3 50 46 2 50 662 609 2,646 3,652 DST-JGRM- -DS18X100 New
Ds20x5 20 58 47 26 6.3 50 46 2 50 1,255 1,154 5,019 6,924 DST-JGRM- -DS20X5 New
Ds20x10 20 58 47 26 6.3 50 46 2 50 1,255 1,154 5,019 6,926 DST-JGRM- -DS20X10 New
Ds20x20 20 58 47 26 6.3 50 46 2 50 1,230 1,132 4,921 6,791 DST-JGRM- -DS20X20 New
Ds20x50 20 58 47 26 6.3 50 46 2 50 1,008 927 4,031 5,562 DST-JGRM- -DS20X50 New
Ds20x60 20 58 47 26 6.3 50 46 2 50 828 762 3,313 4,572 DST-JGRM- -DS20X60 New
Ds20x80 20 58 47 26 6.3 50 46 2 50 852 784 3,408 4,703 DST-JGRM- -DS20X80 New
Ds20x90 20 58 47 26 6.3 50 46 2 50 828 762 3,313 4,572 DST-JGRM- -DS20X90 New
= C-01/HD-02
Order example: DST-JGRM-C-01-DS14x25: C-01 lead screw nut made of iglidur J, with 14x25 right-hand
®
thread
