dryspin dryspin
®
®
®
®

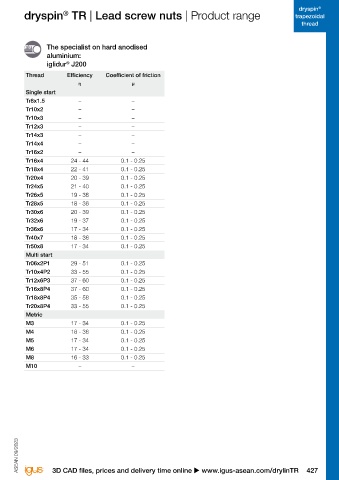

trapezoidal dryspin TR | Nuts | Product range dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
FDA-compliant for the food/ For high speeds: The specialist on hard anodised
pharmaceutical industry: iglidur E7 aluminium:
®
iglidur A180 iglidur J200
®
®
Thread Efficiency Coefficient of friction Efficiency Coefficient of friction Thread Efficiency Coefficient of friction
η µ η µ η µ
Single start Single start
Tr8x1.5 19 - 28 0.15 - 0.25 16 - 23 0.2 - 0.3 Tr8x1.5 – –
Tr10x2 20 - 30 0.15 - 0.25 17 - 24 0.2 - 0.3 Tr10x2 – –
Tr10x3 27 - 38 0.15 - 0.25 23 - 32 0.2 - 0.3 Tr10x3 – –
Tr12x3 24 - 44 0.15 - 0.25 20 - 28 0.2 - 0.3 Tr12x3 – –
Tr14x3 21 - 31 0.15 - 0.25 18 - 25 0.2 - 0.3 Tr14x3 – –
Tr14x4 26 - 47 0.15 - 0.25 23 - 31 0.2 - 0.3 Tr14x4 – –
Tr16x2 14 - 21 0.15 - 0.25 – – Tr16x2 – –
Tr16x4 24 - 34 0.15 - 0.25 – – Tr16x4 24 - 44 0.1 - 0.25
Tr18x4 22 - 32 0.15 - 0.25 – – Tr18x4 22 - 41 0.1 - 0.25
Tr20x4 20 - 30 0.15 - 0.25 – – Tr20x4 20 - 39 0.1 - 0.25
Tr24x5 21 - 30 0.15 - 0.25 – – Tr24x5 21 - 40 0.1 - 0.25
Tr26x5 19 - 29 0.15 - 0.25 – – Tr26x5 19 - 38 0.1 - 0.25
Tr28x5 18 - 27 0.15 - 0.25 – – Tr28x5 18 - 36 0.1 - 0.25
Tr30x6 20 - 30 0.15 - 0.25 – – Tr30x6 20 - 39 0.1 - 0.25
Tr32x6 19 - 28 0.15 - 0.25 – – Tr32x6 19 - 37 0.1 - 0.25
Tr36x6 17 - 26 0.15 - 0.25 – – Tr36x6 17 - 34 0.1 - 0.25
Tr40x7 18 - 27 0.15 - 0.25 – – Tr40x7 18 - 36 0.1 - 0.25
Tr50x8 – – – – Tr50x8 17 - 34 0.1 - 0.25
Multi start Multi start
Tr06x2P1 29 - 41 0.15 - 0.25 25 - 34 0.2 - 0.3 Tr06x2P1 29 - 51 0.1 - 0.25
Tr10x4P2 33 - 45 0.15 - 0.25 29 - 38 0.2 - 0.3 Tr10x4P2 33 - 55 0.1 - 0.25
Tr12x6P3 37 - 50 0.15 - 0.25 33 - 43 0.2 - 0.3 Tr12x6P3 37 - 60 0.1 - 0.25
Tr16x8P4 37 - 50 0.15 - 0.25 – – Tr16x8P4 37 - 60 0.1 - 0.25
Tr18x8P4 35 - 48 0.15 - 0.25 – – Tr18x8P4 35 - 58 0.1 - 0.25
Tr20x8P4 33 - 45 0.15 - 0.25 – – Tr20x8P4 33 - 55 0.1 - 0.25
Metric Metric
M3 17 - 26 0.15 - 0.25 15 - 21 0.2 - 0.3 M3 17 - 34 0.1 - 0.25
M4 18 - 27 0.15 - 0.25 15 - 22 0.2 - 0.3 M4 18 - 36 0.1 - 0.25
M5 17 - 25 0.15 - 0.25 14 - 20 0.2 - 0.3 M5 17 - 34 0.1 - 0.25
M6 17 - 26 0.15 - 0.25 15 - 21 0.2 - 0.3 M6 17 - 34 0.1 - 0.25
M8 16 - 25 0.15 - 0.25 14 - 20 0.2 - 0.3 M8 16 - 33 0.1 - 0.25
M10 16 - 24 0.15 - 0.25 14 - 19 0.2 - 0.3 M10 – –
