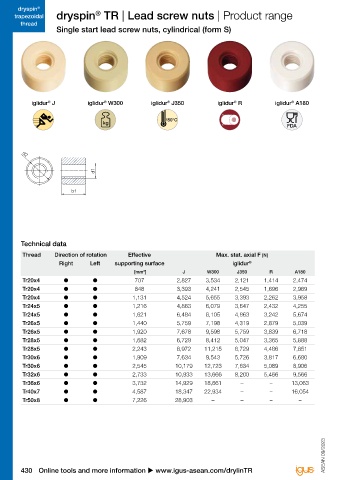

trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Single start lead screw nuts, cylindrical (form S)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur W300 iglidur J350 iglidur R iglidur A180 R: Right-hand thread
®
®
®
®
®
L: Left-hand thread
iglidur ® material Form S Direction of rotation Metric Outer Ø [mm] Length [mm] Thread type Diameter [mm] Pitch

J High efficiency at all speeds Standard
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
W(300) Extremely strong and wear-resistant Optional

Technical data Dimensions [mm]

Thread Direction of rotation Effective Max. stat. axial F [N] d1 156) d2 156) b1 156) Weight [g] Part No.
Right Left supporting surface iglidur ® iglidur ®
2
[mm ] J W300 J350 R A180 J W300 J350 R A180
Tr20x4 ● ● 707 2,827 3,534 2,121 1,414 2,474 20 30 25 14.6 15.1 14.1 13.6 14.3 S M-3025TR20X4
Tr20x4 ● ● 848 3,393 4,241 2,545 1,696 2,969 20 45 30 57.0 58.9 55.1 53.2 55.9 S M-4530TR20X4
Tr20x4 ● ● 1,131 4,524 5,655 3,393 2,262 3,958 20 45 40 76.1 78.5 73.5 71.0 74.5 S M-4540TR20X4
Tr24x5 ● ● 1,216 4,863 6,079 3,647 2,432 4,255 24 50 36 81.1 83.6 78.3 75.6 79.4 S M-5036TR24X5
Tr24x5 ● ● 1,621 6,484 8,105 4,863 3,242 5,674 24 50 48 108.1 111.5 104.4 100.8 105.9 S M-5048TR24X5
Tr26x5 ● ● 1,440 5,759 7,198 4,319 2,879 5,039 26 50 39 83.2 85.9 80.5 77.7 81.6 S M-5039TR26X5
Tr26x5 ● ● 1,920 7,678 9,598 5,759 3,839 6,718 26 50 52 111.0 114.5 107.3 103.5 108.8 S M-5052TR26X5
Tr28x5 ● ● 1,682 6,729 8,412 5,047 3,365 5,888 28 60 42 138.4 142.8 133.8 129.1 135.6 S M-6042TR28X5
Tr28x5 ● ● 2,243 8,972 11,215 6,729 4,486 7,851 28 60 56 184.5 190.4 178.3 172.2 180.8 S M-6056TR28X5
Tr30x6 ● ● 1,909 7,634 9,543 5,726 3,817 6,680 30 60 45 142.2 146.7 137.4 132.6 139.3 S M-6045TR30X6
Tr30x6 ● ● 2,545 10,179 12,723 7,634 5,089 8,906 30 60 60 189.6 195.6 183.2 176.9 185.8 S M-6060TR30X6
Tr32x6 ● ● 2,733 10,933 13,666 8,200 5,466 9,566 32 60 60 180.9 186.7 174.8 168.7 177.2 S M-6060TR32X6
Tr36x6 ● ● 3,732 14,929 18,661 – – 13,063 36 75 72 364.8 376.4 – – 357.4 S M-7572TR36X6
Tr40x7 ● ● 4,587 18,347 22,934 – – 16,054 40 76 80 391.0 403.4 – – 383.1 S M-7680TR40X7
Tr50x8 ● ● 7,226 28,903 – – – – 50 90 100 655.3 – – – – S M-90100TR50X8
156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
