dryspin dryspin
®
®
®

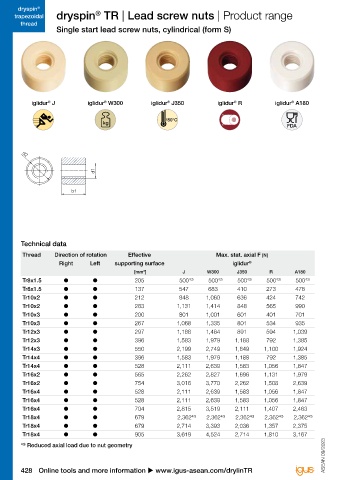

trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Single start lead screw nuts, cylindrical (form S)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur W300 iglidur J350 iglidur R iglidur A180 R: Right-hand thread
®
®
®
®
®
L: Left-hand thread
iglidur ® material Form S Direction of rotation Metric Outer Ø [mm] Length [mm] Thread type Diameter [mm] Pitch

J High efficiency at all speeds Standard
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
W(300) Extremely strong and wear-resistant Optional

Technical data Dimensions [mm]

Thread Direction of rotation Effective Max. stat. axial F [N] d1 156) d2 156) b1 156) Weight [g] Part No.
Right Left supporting surface iglidur ® iglidur ®
[mm ] J W300 J350 R A180 J W300 J350 R A180
2
Tr8x1.5 ● ● 205 500 43) 500 43) 500 43) 500 43) 500 43) 8 14 18 2.8 2.9 2.7 2.6 2.7 S M-1418TR8X1.5
Tr8x1.5 ● ● 137 547 683 410 273 478 8 18 12 3.7 3.8 3.5 3.4 3.6 S M-1812TR8X1.5
Tr10x2 ● ● 212 848 1,060 636 424 742 10 22 15 6.7 7.0 6.5 6.3 6.6 S M-2215TR10X2
Tr10x2 ● ● 283 1,131 1,414 848 565 990 10 22 20 9.0 9.3 8.7 8.4 8.8 S M-2220TR10X2
Tr10x3 ● ● 200 801 1,001 601 401 701 10 22 15 6.7 7.0 6.5 6.3 6.6 S M-2215TR10X3
Tr10x3 ● ● 267 1,068 1,335 801 534 935 10 22 20 9.0 9.3 8.7 8.4 8.8 S M-2220TR10X3
Tr12x3 ● ● 297 1,188 1,484 891 594 1,039 12 26 18 11.2 11.6 10.8 10.5 11.0 S M-2618TR12X3
Tr12x3 ● ● 396 1,583 1,979 1,188 792 1,385 12 26 24 14.9 15.4 14.4 13.9 14.6 S M-2624TR12X3
Tr14x3 ● ● 550 2,199 2,749 1,649 1,100 1,924 14 30 28 23.1 23.8 22.3 21.5 22.6 S M-3028TR14X3
Tr14x4 ● ● 396 1,583 1,979 1,188 792 1,385 14 30 21 17.3 17.9 16.7 16.1 17.0 S M-3021TR14X4
Tr14x4 ● ● 528 2,111 2,639 1,583 1,056 1,847 14 30 28 23.1 23.8 22.3 21.5 22.6 S M-3028TR14X4
Tr16x2 ● ● 565 2,262 2,827 1,696 1,131 1,979 16 36 24 29.2 30.1 28.2 27.2 28.6 S M-3624TR16X2
Tr16x2 ● ● 754 3,016 3,770 2,262 1,508 2,639 16 36 32 38.9 40.2 37.6 36.3 38.2 S M-3632TR16X2
Tr16x4 ● ● 528 2,111 2,639 1,583 1,056 1,847 16 30 24 18.1 18.7 17.5 16.9 17.7 S M-3024TR16X4
Tr16x4 ● ● 528 2,111 2,639 1,583 1,056 1,847 16 36 24 29.2 30.1 28.2 27.2 28.6 S M-3624TR16X4
Tr16x4 ● ● 704 2,815 3,519 2,111 1,407 2,463 16 36 32 38.9 40.2 37.6 36.3 38.2 S M-3632TR16X4
Tr18x4 ● ● 679 2,362 43) 2,362 43) 2,362 43) 2,362 43) 2,362 43) 18 30 27 18.2 18.8 17.6 17.0 17.8 S M-3027TR18X4
Tr18x4 ● ● 679 2,714 3,393 2,036 1,357 2,375 18 40 27 40.3 41.6 39.0 37.6 39.5 S M-4027TR18X4
Tr18x4 ● ● 905 3,619 4,524 2,714 1,810 3,167 18 40 36 53.8 55.5 52.0 50.1 52.7 S M-4036TR18X4
ASEAN 09/2023 ASEAN 09/2023
43) Reduced axial load due to nut geometry 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
