dryspin                                                                                                                                                                                                                   dryspin
                                                                                                                                                                                                                                        ®
              ®
                                   ®
      trapezoidal    dryspin  TR | Lead screw nuts | Product range                                                                                                                                                              trapezoidal
        thread                                                                                                                                                                                                                    thread

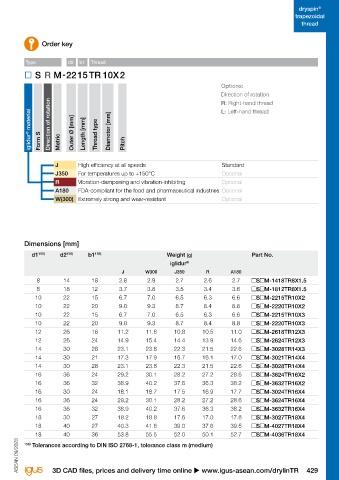

                     Single start lead screw nuts, cylindrical (form S)
                                                                                                                                       Order key


                                                                                                                                 Type           d2  b1  Thread



                                                                                                                                                                                                      Options:
                                                                                                                                                                                                      Direction of rotation
            iglidur  J          iglidur  W300         iglidur  J350          iglidur  R           iglidur  A180                                                                                       R: Right-hand thread
                  ®
                                      ®
                                                                                                       ®
                                                                                   ®
                                                            ®
                                                                                                                                                                                                      L: Left-hand thread
                                                                                                                                   iglidur ®  material  Form S  Direction of rotation  Metric  Outer Ø [mm]  Length [mm]  Thread type  Diameter [mm]  Pitch




                                                                                                                                            J      High efficiency at all speeds                      Standard
                                                                                                                                            J350   For temperatures up to +150°C                      Optional
                                                                                                                                            R      Vibration-dampening and vibration-inhibiting       Optional
                                                                                                                                            A180   FDA-compliant for the food and pharmaceutical industries Optional
                                                                                                                                            W(300) Extremely strong and wear-resistant                Optional







        Technical data                                                                                                           Dimensions [mm]

         Thread     Direction of rotation     Effective                      Max. stat. axial F [N]                                d1 156)   d2 156)   b1 156)                     Weight [g]                    Part No.
                      Right      Left    supporting surface                        iglidur ®                                                                                        iglidur ®
                                                 [mm ]           J        W300      J350        R        A180                                                      J       W300      J350       R        A180
                                                   2
         Tr8x1.5       ●          ●             205             500 43)   500 43)   500 43)    500 43)   500 43)                     8        14        18        2.8       2.9       2.7       2.6       2.7     S M-1418TR8X1.5
         Tr8x1.5       ●          ●             137             547       683       410        273       478                         8        18        12        3.7       3.8       3.5       3.4       3.6     S M-1812TR8X1.5
         Tr10x2        ●          ●             212             848      1,060      636        424       742                        10        22        15        6.7       7.0       6.5       6.3       6.6     S M-2215TR10X2
         Tr10x2        ●          ●             283            1,131     1,414      848        565       990                        10        22        20        9.0       9.3       8.7       8.4       8.8     S M-2220TR10X2
         Tr10x3        ●          ●             200             801      1,001      601        401       701                        10        22        15        6.7       7.0       6.5       6.3       6.6     S M-2215TR10X3
         Tr10x3        ●          ●             267            1,068     1,335      801        534       935                        10        22        20        9.0       9.3       8.7       8.4       8.8     S M-2220TR10X3
         Tr12x3        ●          ●             297            1,188     1,484      891        594      1,039                       12        26        18       11.2      11.6      10.8      10.5      11.0     S M-2618TR12X3
         Tr12x3        ●          ●             396            1,583     1,979      1,188      792      1,385                       12        26        24       14.9      15.4      14.4      13.9      14.6     S M-2624TR12X3
         Tr14x3        ●          ●             550            2,199     2,749      1,649     1,100     1,924                       14        30        28       23.1      23.8      22.3      21.5      22.6     S M-3028TR14X3
         Tr14x4        ●          ●             396            1,583     1,979      1,188      792      1,385                       14        30        21       17.3      17.9      16.7      16.1      17.0     S M-3021TR14X4
         Tr14x4        ●          ●             528            2,111     2,639      1,583     1,056     1,847                       14        30        28       23.1      23.8      22.3      21.5      22.6     S M-3028TR14X4
         Tr16x2        ●          ●             565            2,262     2,827      1,696     1,131     1,979                       16        36        24       29.2      30.1      28.2      27.2      28.6     S M-3624TR16X2
         Tr16x2        ●          ●             754            3,016     3,770      2,262     1,508     2,639                       16        36        32       38.9      40.2      37.6      36.3      38.2     S M-3632TR16X2
         Tr16x4        ●          ●             528            2,111     2,639      1,583     1,056     1,847                       16        30        24       18.1      18.7      17.5      16.9      17.7     S M-3024TR16X4
         Tr16x4        ●          ●             528            2,111     2,639      1,583     1,056     1,847                       16        36        24       29.2      30.1      28.2      27.2      28.6     S M-3624TR16X4
         Tr16x4        ●          ●             704            2,815     3,519      2,111     1,407     2,463                       16        36        32       38.9      40.2      37.6      36.3      38.2     S M-3632TR16X4
         Tr18x4        ●          ●             679            2,362 43)  2,362 43)  2,362 43)  2,362 43)  2,362 43)                18        30        27       18.2      18.8      17.6      17.0      17.8     S M-3027TR18X4
         Tr18x4        ●          ●             679            2,714     3,393      2,036     1,357     2,375                       18        40        27       40.3      41.6      39.0      37.6      39.5     S M-4027TR18X4
         Tr18x4        ●          ●             905            3,619     4,524      2,714     1,810     3,167                       18        40        36       53.8      55.5      52.0      50.1      52.7     S M-4036TR18X4
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023
        43)  Reduced axial load due to nut geometry                                                                              156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)



        428 Online tools and more information u www.igus-asean.com/drylinTR                                                               3D CAD files, prices and delivery time online u www.igus-asean.com/drylinTR               429
