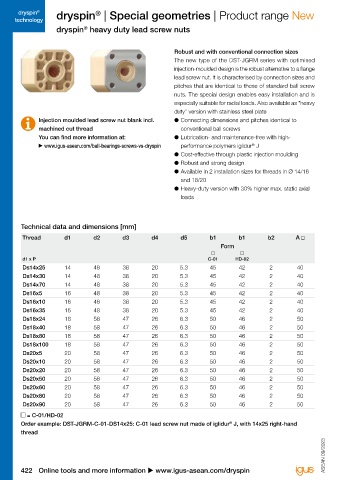

       dryspin       dryspin  | Special geometries | Product range New                                                                                                                                                           dryspin
              ®
                                                                                                                                                                                                                                        ®
      technology                                                                                                                                                                                                                technology
                     dryspin  heavy duty lead screw nuts
                              ®
                                                                                                                                                                                             Order key
                                                                                                                                       A
                                                              Robust and with conventional connection sizes                      d2              d3
                                                              The new type of the DST-JGRM series with optimised                                                                       Type                   Option  Thread
                                                              injection-moulded design is the robust alternative to a flange
                                                              lead screw nut. It is characterised by connection sizes and                            A  d4  d1
                                                              pitches that are identical to those of standard ball screw
                                                                                                                                 d5
                                                              nuts. The special design enables easy installation and is
                                                                                                                                                         b2       b1
                                                              especially suitable for radial loads. Also available as "heavy           A
                                                              duty" version with stainless steel plate                                         Design C-01
               Injection moulded lead screw nut blank incl.   ● 	Connecting dimensions and pitches identical to
               machined cut thread                              conventional ball screws                                                                                                  dryspin ®  technology  Direction of rotation
               You can find more information at:              ● 	Lubrication- and maintenance-free with high-                    d2    A        d3  47                                         iglidur ®  material  Lead screw drive  Thread type  Diameter [mm]
                 www.igus-asean.com/ball-bearings-screws-vs-dryspin  performance polymers iglidur  J                                                                                                       Metric  Design         Pitch
                                                                                         ®
                                                              ● 	Cost-effective through plastic injection moulding
                                                              ● 	Robust and strong design                                                             A  d4  d1                       Options:
                                                              ● 	Available in 2 installation sizes for threads in Ø 14/16                                                             C-01 : Standard
                                                                and 18/20                                                        d5
                                                              ● 	Heavy-duty version with 30% higher max. static axial                  A                  b2       b1                 HD-02 : Heavy duty
                                                                loads                                                                          Design HD-02





        Technical data and dimensions [mm]
         Thread         d1        d2        d3        d4        d5         b1        b1        b2        A                             Effective support surface                Max. static load          Part No.
                                                                               Form                                                              [mm²]                              axial [N]

         d1 x P                                                           C-01      HD-02                                               C-01             HD-02              C-01              HD-02
         Ds14x25        14        48        38        20        5.3        45        42         2        40                             734               685              2,936              4,110       DST-JGRM- -DS14X25      New
         Ds14x30        14        48        38        20        5.3        45        42         2        40                             734               685              2,936              4,110       DST-JGRM- -DS14X30      New
         Ds14x70        14        48        38        20        5.3        45        42         2        40                             392               366              1,567              2,194       DST-JGRM- -DS14X70      New
         Ds16x5         16        48        38        20        5.3        45        42         2        40                             867               809              3,466              4,853       DST-JGRM- -DS16X5       New
         Ds16x10        16        48        38        20        5.3        45        42         2        40                             867               809              3,466              4,853       DST-JGRM- -DS16X10      New
         Ds16x35        16        48        38        20        5.3        45        42         2        40                             858               801              3,434              4,807       DST-JGRM- -DS16X35      New
         Ds18x24        18        58        47        26        6.3        50        46         2        50                            1,179             1,085             4,716              6,508       DST-JGRM- -DS18X24      New
         Ds18x40        18        58        47        26        6.3        50        46         2        50                            1,092             1,005             4,368              6,028       DST-JGRM- -DS18X40      New
         Ds18x80        18        58        47        26        6.3        50        46         2        50                             754               694              3,016              4,162       DST-JGRM- -DS18X80      New
         Ds18x100       18        58        47        26        6.3        50        46         2        50                             662               609              2,646              3,652       DST-JGRM- -DS18X100 New
         Ds20x5         20        58        47        26        6.3        50        46         2        50                            1,255             1,154             5,019              6,924       DST-JGRM- -DS20X5       New
         Ds20x10        20        58        47        26        6.3        50        46         2        50                            1,255             1,154             5,019              6,926       DST-JGRM- -DS20X10      New
         Ds20x20        20        58        47        26        6.3        50        46         2        50                            1,230             1,132             4,921              6,791       DST-JGRM- -DS20X20      New
         Ds20x50        20        58        47        26        6.3        50        46         2        50                            1,008              927              4,031              5,562       DST-JGRM- -DS20X50      New
         Ds20x60        20        58        47        26        6.3        50        46         2        50                             828               762              3,313              4,572       DST-JGRM- -DS20X60      New
         Ds20x80        20        58        47        26        6.3        50        46         2        50                             852               784              3,408              4,703       DST-JGRM- -DS20X80      New
         Ds20x90        20        58        47        26        6.3        50        46         2        50                             828               762              3,313              4,572       DST-JGRM- -DS20X90      New
           =  C-01/HD-02
        Order example: DST-JGRM-C-01-DS14x25: C-01 lead screw nut made of iglidur  J, with 14x25 right-hand
                                                                                  ®
        thread
