dryspin       dryspin  technology | Lead screw nuts | Product range                                                                                                                                                       dryspin
                                 ®
              ®
                                                                                                                                                                                                                                        ®
      technology                                                                                                                                                                                                                technology
                     Lead screw nuts with spanner flat and flange

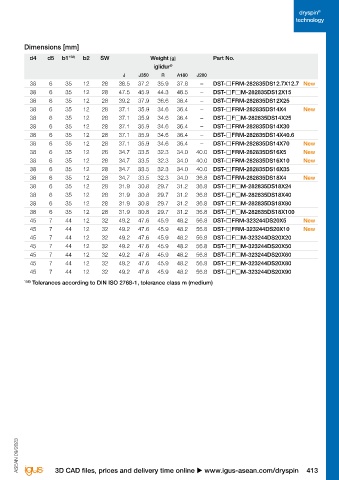

        Technical data                                                                                                           Dimensions [mm]

         Thread      Direction of rotation  Effective     Pitch       Max. stat. axial F [N]   d1 156)  d2 156)  d3                d4    d5   b1 156)  b2  SW                Weight [g]            Part No.
                       Right     Left   supporting surface  P               iglidur ®                                                                                         iglidur ®
                                              [mm ]        [mm]    J    J350   R    A180  J200                                                                     J     J350    R    A180   J200
                                                 2
         Ds12.7x12.7     ●        –            599         12.7  1.496 1.496 1,197 1.496   –   12.7   28    48                     38    6     35    12     28    38.5   37.2  35.9   37.8    –    DST-   FRM-282835DS12.7X12.7 New
         Ds12x15         ●        ●            561         15    1,402 1,402 1,121 1,402   –    12    28    48                     38    6     35    12     28    47.5   45.9  44.3   46.5    –    DST-   F   M-282835DS12X15
         Ds12x25         ●        –            559         25    1,397 1,397 1,118 1,397   –    12    28    48                     38    6     35    12     28    39.2   37.9  36.6   38.4    –    DST-   FRM-282835DS12X25
         Ds14x4          ●        –            667          4    2,666 2,000 1,333 2,333   –    14    28    48                     38    6     35    12     28    37.1   35.9  34.6   36.4    –    DST-   FRM-282835DS14X4         New
         Ds14x25         ●        ●            571         25    1,427  1,427  1,142  1,427   –  14   28    48                     38    6     35    12     28    37.1   35.9  34.6   36.4    –    DST-   F   M-282835DS14X25
         Ds14x30         ●        –            571         30    1,427  1,427  1,142  1,427   –  14   28    48                     38    6     35    12     28    37.1   35.9  34.6   36.4    –    DST-   FRM-282835DS14X30
         Ds14x40.6       ●        –            557         40.6  1,393 1,393 1,114 1,393   –    14    28    48                     38    6     35    12     28    37.1   35.9  34.6   36.4    –    DST-   FRM-282835DS14X40.6
         Ds14x70         ●        –            305         70    762    762   609   762    –    14    28    48                     38    6     35    12     28    37.1   35.9  34.6   36.4    –    DST-   FRM-282835DS14X70        New
         Ds16x5          ●        –            724          5    2,896 2,172 1,448 2,534 1,448  16    28    48                     38    6     35    12     28    34.7   33.5  32.3   34.0   40.0  DST-   FRM-282835DS16X5         New
         Ds16x10         ●        –            674         10    2,696 2,022 1,348 2,359 1,348  16    28    48                     38    6     35    12     28    34.7   33.5  32.3   34.0   40.0  DST-   FRM-282835DS16X10        New
         Ds16x35         ●        –            668         35    1,669  1,669  1,335  1,669  1,335  16  28  48                     38    6     35    12     28    34.7   33.5  32.3   34.0   40.0  DST-   FRM-282835DS16X35
         Ds18x4          ●        –            889          4    3,557 2,668 1,778 3,112 1,778  18    28    48                     38    6     35    12     28    34.7   33.5  32.3   34.0   36.8  DST-   FRM-282835DS18X4         New
         Ds18x24         ●        ●            815         24    2,038 2,038 1,631 2,038 1,631  18    28    48                     38    6     35    12     28    31.9   30.8  29.7   31.2   36.8  DST-   F   M-282835DS18X24
         Ds18x40         ●        ●            764         40    1,911  1,911  1,529  1,911  1,529  18  28  48                     38    6     35    12     28    31.9   30.8  29.7   31.2   36.8  DST-   F   M-282835DS18X40
         Ds18x80         ●        ●            528         80    1,319  1,319  1,056  1,319  1,056  18  28  48                     38    6     35    12     28    31.9   30.8  29.7   31.2   36.8  DST-   F   M-282835DS18X80
         Ds18x100        ●        ●            463         100   1,158  1,158  926  1,158  926  18    28    48                     38    6     35    12     28    31.9   30.8  29.7   31.2   36.8  DST-   F   M-282835DS18X100
         Ds20x5          ●        –           1,168         5    4,671 3,503 2,336 4,087 2,336  20    32    55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   FRM-323244DS20X5         New
         Ds20x10         ●        –           1,093        10    4,374 3,280 2,187 3,827 2,187  20    32    55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   FRM-323244DS20X10        New
         Ds20x20         ●        ●           1,083        20    2,707  2,707  2,165 2,707  2,165  20  32   55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   F   M-323244DS20X20
         Ds20x50         ●        –            870         50    2,174 2,174 1,739 2,174 1,739  20    32    55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   F   M-323244DS20X50
         Ds20x60         ●        ●            729         60    1,822  1,822  1,458 1,822  1,458  20  32   55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   F   M-323244DS20X60
         Ds20x80         ●        ●            750         80    1,874 1,874 1,500 1,874 1,500  20    32    55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   F   M-323244DS20X80
         Ds20x90         ●        ●            729         90    1,822 1,822 1,458 1,822 1,458  20    32    55                     45    7     44    12     32    49.2   47.6  45.9   48.2   56.8  DST-   F   M-323244DS20X90
                                                                                                                                 156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
