dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
®
technology technology
Lead screw nuts with flange (form F)

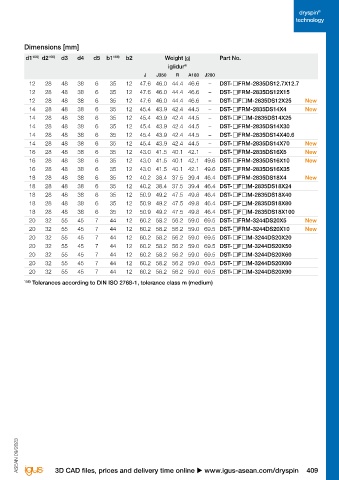

Technical data Dimensions [mm]

Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) d3 d4 d5 b1 156) b2 Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
[mm ] [mm] J J350 R A180 J200 J J350 R A180 J200
2
Ds12.7x12.7 ● – 599 12.7 1.496 1.496 1,197 1.496 – 12 28 48 38 6 35 12 47.6 46.0 44.4 46.6 – DST- FRM-2835DS12.7X12.7
Ds12x15 ● ● 561 15 1,402 1,402 1,121 1,402 – 12 28 48 38 6 35 12 47.6 46.0 44.4 46.6 – DST- FRM-2835DS12X15
Ds12x25 ● ● 559 25 1,397 1,397 1,118 1,397 – 12 28 48 38 6 35 12 47.6 46.0 44.4 46.6 – DST- F M-2835DS12X25 New
Ds14x4 ● – 677 4 2,666 2,000 1,333 2,333 – 14 28 48 38 6 35 12 45.4 43.9 42.4 44.5 – DST- FRM-2835DS14X4 New
Ds14x25 ● ● 571 25 1,427 1,427 1.142 1,427 – 14 28 48 38 6 35 12 45.4 43.9 42.4 44.5 – DST- F M-2835DS14X25
Ds14x30 ● – 571 30 1,427 1,427 1.142 1,427 – 14 28 48 38 6 35 12 45.4 43.9 42.4 44.5 – DST- FRM-2835DS14X30
Ds14x40.6 ● – 557 40.6 1,393 1,393 1,114 1,393 – 14 28 48 38 6 35 12 45.4 43.9 42.4 44.5 – DST- FRM-2835DS14X40.6
Ds14x70 ● – 305 70 762 762 609 762 – 14 28 48 38 6 35 12 45.4 43.9 42.4 44.5 – DST- FRM-2835DS14X70 New
Ds16x5 ● – 724 5 2,896 2,172 1,448 2,534 1,448 16 28 48 38 6 35 12 43.0 41.5 40.1 42.1 – DST- FRM-2835DS16X5 New
Ds16x10 ● – 674 10 2,696 2,022 1,348 2,359 1,348 16 28 48 38 6 35 12 43.0 41.5 40.1 42.1 49.6 DST- FRM-2835DS16X10 New
Ds16x35 ● – 668 35 1,669 1,669 1,335 1,669 1,335 16 28 48 38 6 35 12 43.0 41.5 40.1 42.1 49.6 DST- FRM-2835DS16X35
Ds18x4 ● – 889 4 3,557 2,668 1,778 3,112 1,778 18 28 48 38 6 35 12 40.2 38.4 37.5 39.4 46.4 DST- FRM-2835DS18X4 New
Ds18x24 ● ● 815 24 2,038 2,038 1,631 2,038 1,631 18 28 48 38 6 35 12 40.2 38.4 37.5 39.4 46.4 DST- F M-2835DS18X24
Ds18x40 ● ● 764 40 1,911 1,911 1,529 1,911 1,529 18 28 48 38 6 35 12 50.9 49.2 47.5 49.8 46.4 DST- F M-2835DS18X40
Ds18x80 ● ● 528 80 1,319 1,319 1,056 1,319 1,056 18 28 48 38 6 35 12 50.9 49.2 47.5 49.8 46.4 DST- F M-2835DS18X80
Ds18x100 ● ● 463 100 1,158 1,158 926 1,158 926 18 28 48 38 6 35 12 50.9 49.2 47.5 49.8 46.4 DST- F M-2835DS18X100
Ds20x5 ● – 1,168 5 4,671 3,503 2,336 4,087 2,336 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- FRM-3244DS20X5 New
Ds20x10 ● – 1,093 10 4,374 3,280 2,187 3,827 2,187 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- FRM-3244DS20X10 New
Ds20x20 ● ● 1,083 20 2,707 2,707 2,165 2,707 2,165 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- F M-3244DS20X20
Ds20x50 ● – 870 50 2,174 2,174 1,739 2,174 1,739 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- F M-3244DS20X50
Ds20x60 ● ● 729 60 1,822 1,822 1,458 1,822 1,458 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- F M-3244DS20X60
Ds20x80 ● ● 750 80 1,874 1,874 1,500 1,874 1,500 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- F M-3244DS20X80
Ds20x90 ● ● 729 90 1,822 1,822 1.458 1,822 1,342 20 32 55 45 7 44 12 60.2 58.2 56.2 59.0 69.5 DST- F M-3244DS20X90
156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
