dryspin       dryspin  technology | Lead screw nuts | Product range                                                                                                                                                       dryspin
                                 ®
                                                                                                                                                                                                                                        ®
              ®
      technology                                                                                                                                                                                                                technology

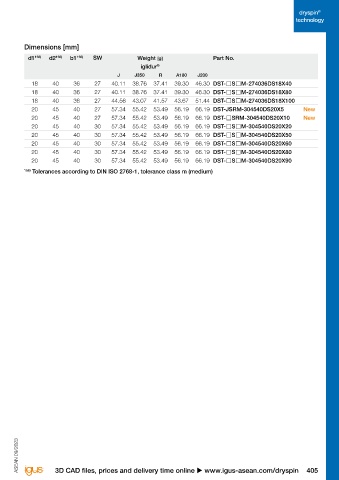

        Technical data                                                                                                           Dimensions [mm]

         Thread      Direction of rotation   Effective       Pitch           Max. stat. axial F [N]                               d1 156)  d2 156)  b1 156)  SW         Weight [g]                 Part No.
                       Right      Left    support surface      P                   iglidur ®                                                                             iglidur ®
                                               [mm ]          [mm]       J      J350      R      A180     J200                                                   J     J350     R     A180   J200
                                                  2
         DS18x40         ●         ●            786            40      1,966   1,966    1,573   1,966    1,573                     18      40     36     27    40.11   38.76  37.41  39.30   46.30 DST-   S   M-274036DS18X40
         DS18x80         ●         ●            543            80      1,357   1,357    1,086   1,357    1,086                     18      40     36     27    40.11   38.76  37.41  39.30   46.30 DST-   S   M-274036DS18X80
         DS18x100        ●         ●            476           100      1.191   1.191     953    1.191     953                      18      40     36     27    44.56   43.07  41.57  43.67   51.44 DST-   S   M-274036DS18X100
         DS20x5          ●         –           1.062           5       4,246   3,185    2,123   3,716    2,123                     20      45     40     27    57.34   55.42  53.49  56.19   66.19 DST-JSRM-304540DS20X5           New
         DS20x10         ●         –            994            10      3.976   2,982    1,988   3,479    1,988                     20      45     40     27    57.34   55.42  53.49  56.19   66.19 DST-   SRM-304540DS20X10        New
         DS20x20         ●         ●            984            20      2,460   2,460    1,968   2,460    1,968                     20      45     40     30    57.34   55.42  53.49  56.19   66.19 DST-   S   M-304540DS20X20
         DS20x50         ●         –            790            50      1,976   1,976    1,581   1,976    1,581                     20      45     40     30    57.34   55.42  53.49  56.19   66.19 DST-   S   M-304540DS20X50
         DS20x60         ●         ●            663            60      1,657   1,657    1,325   1,657    1,325                     20      45     40     30    57.34   55.42  53.49  56.19   66.19 DST-   S   M-304540DS20X60
         DS20x80         ●         ●            382            80      1,704   1,704    1,363   1,704    1,363                     20      45     40     30    57.34   55.42  53.49  56.19   66.19 DST-   S   M-304540DS20X80
         DS20x90         ●         ●            663            90      1,657   1,657    1,325   1,657    1,325                     20      45     40     30    57.34   55.42  53.49  56.19   66.19 DST-   S   M-304540DS20X90

                                                                                                                                 156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
