       dryspin       dryspin  technology | Lead screw nuts | Product range                                                                                                                                                       dryspin
              ®
                                                                                                                                                                                                                                        ®
      technology                                                                                                                                                                                                                technology

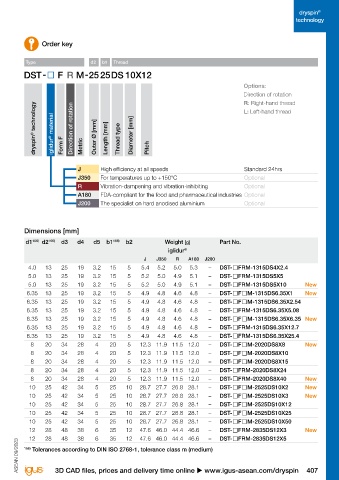

                     Lead screw nuts with flange (form F)
                                                                                                                                       Order key


                                                                                                                                 Type                   d2  b1  Thread



                                                                                                                                                                                                              Options:
                                                                                                                                                                                                              Direction of rotation
              iglidur  J        iglidur  J350         iglidur  R        iglidur  A180       iglidur  J200                                                                                                     R: Right-hand thread
                    ®
                                                                              ®
                                                                                                  ®
                                      ®
                                                           ®
                                                                                                                                    dryspin ®  technology  iglidur ®  material  Form F  Direction of rotation  Metric  Outer Ø [mm]  Length [mm]  Thread type  Diameter [mm]
                                                                                                                                                                                                              L: Left-hand thread

                                                                                                                                                                            Pitch



                                                                                                                                                   J       High efficiency at all speeds                      Standard 24hrs
                                                                                                                                                   J350    For temperatures up to +150°C                      Optional
                                                                                                                                                   R       Vibration-dampening and vibration-inhibiting       Optional
                                                                                                                                                   A180    FDA-compliant for the food and pharmaceutical industries Optional
                                                                                                                                                   J200    The specialist on hard anodised aluminium          Optional




        Technical data                                                                                                           Dimensions [mm]
         Thread      Direction of rotation   Effective        Pitch              Max. stat. axial F [N]                          d1 156)  d2 156)  d3  d4  d5  b1 156)  b2        Weight [g]         Part No.
                       Right      Left   supporting surface    P                       iglidur ®                                                                                   iglidur ®
                                               [mm ]          [mm]       J      J350      R      A180     J200                                                             J   J350   R   A180  J200
                                                   2
         Ds4x2.4         ●         –            69             2.4      164     164      132     164       –                      4.0   13    25   19    3.2   15    5    5.4  5.2   5.0   5.3   –   DST-   FRM-1315DS4X2.4
         Ds5x5           ●         –            66             5        166     166      133     166       –                      5.0   13    25   19    3.2   15    5    5.2  5.0   4.9   5.1   –   DST-   FRM-1315DS5X5
         Ds5x10          ●         –            50             10       124     124      100     124       –                      5.0   13    25   19    3.2   15    5    5.2  5.0   4.9   5.1   –   DST-   FRM-1315DS5X10         New
         Ds6.35x1        ●         –            138            1        345     345      276     345       –                     6.35   13    25   19    3.2   15    5    4.9  4.8   4.6   4.8   –   DST-   F   M-1315DS6.35X1     New
         Ds6.35x2.54     ●         ●            199           2.54      496     496      397     496       –                     6.35   13    25   19    3.2   15    5    4.9  4.8   4.6   4.8   –   DST-   F   M-1315DS6.35X2.54
         Ds6.35x5.08     ●         –            156           5.08      390     390      312     390       –                     6.35   13    25   19    3.2   15    5    4.9  4.8   4.6   4.8   –   DST-   FRM-1315DS6.35X5.08
         Ds6.35x6.35     ●         –            120           6.35      300     300      240     300       –                     6.35   13    25   19    3.2   15    5    4.9  4.8   4.6   4.8   –   DST-   F   M-1315DS6.35X6.35 New
         Ds6.35x12.7     ●         –            79            12.7      199     199      159     199       –                     6.35   13    25   19    3.2   15    5    4.9  4.8   4.6   4.8   –   DST-   FRM-1315DS6.35X12.7
         Ds6.35x25.4     ●         –            87            25.4      218     218      174     218       –                     6.35   13    25   19    3.2   15    5    4.9  4.8   4.6   4.8   –   DST-   FRM-1315DS6.35X25.4
         Ds8x8           ●         –            240            8        601     601      481     601       –                       8    20    34   28     4    20    5   12.3 11.9 11.5 12.0     –   DST-   F   M-2020DS8X8        New
         Ds8x10          ●         ●            203            10       507     507      406     507       –                       8    20    34   28     4    20    5   12.3 11.9 11.5 12.0     –   DST-   F   M-2020DS8X10
         Ds8x15          ●         ●            203            15       507     507      406     507       –                       8    20    34   28     4    20    5   12.3 11.9 11.5 12.0     –   DST-   F   M-2020DS8X15
         Ds8x24          ●         –            172            24       430     430      344     430       –                       8    20    34   28     4    20    5   12.3 11.9 11.5 12.0     –   DST-   FRM-2020DS8X24
         Ds8x40          ●         –            95             40       238     238      191     238       –                       8    20    34   28     4    20    5   12.3 11.9 11.5 12.0     –   DST-   FRM-2020DS8X40         New
         Ds10x2          ●         ●            374            2       1,495   1,121     747    1.308      –                      10    25    42   34     5    25   10   28.7 27.7 26.8 28.1     –   DST-   F   M-2525DS10X2       New
         Ds10x3          ●         ●            502            3       2,009   1,507    1,005   1,758      –                      10    25    42   34     5    25   10   28.7 27.7 26.8 28.1     –   DST-   F   M-2525DS10X3       New
         Ds10x12         ●         ●            343            12       857     857      686     857       –                      10    25    42   34     5    25   10   28.7 27.7 26.8 28.1     –   DST-   F   M-2525DS10X12
         Ds10x25         ●         ●            312            25       779     779      623     779       –                      10    25    42   34     5    25   10   28.7 27.7 26.8 28.1     –   DST-   F   M-2525DS10X25
         Ds10x50         ●         ●            181            50       451     451      361     451       –                      10    25    42   34     5    25   10   28.7 27.7 26.8 28.1     –   DST-   F   M-2525DS10X50
         Ds12x3          ●         –            570            3       2,459   1,844    1,229   2.152      –                      12    28    48   38     6    35   12   47.6 46.0 44.4 46.6     –   DST-   FRM-2835DS12X3         New
         Ds12x5          ●         –            570            5       2,280   1,710    1,140   1,995      –                      12    28    48   38     6    35   12   47.6 46.0 44.4 46.6     –   DST-   FRM-2835DS12X5
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
