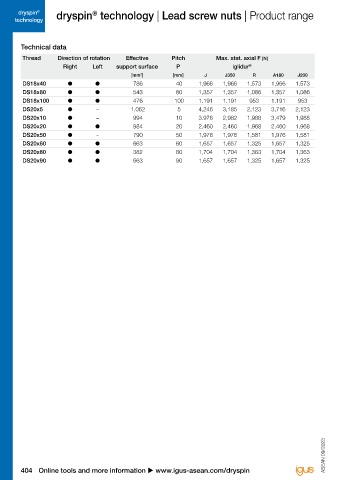

dryspin dryspin technology | Lead screw nuts | Product range dryspin
®
®
®
technology technology

Technical data Dimensions [mm]

Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) b1 156) SW Weight [g] Part No.
Right Left support surface P iglidur ® iglidur ®
[mm ] [mm] J J350 R A180 J200 J J350 R A180 J200
2
DS18x40 ● ● 786 40 1,966 1,966 1,573 1,966 1,573 18 40 36 27 40.11 38.76 37.41 39.30 46.30 DST- S M-274036DS18X40
DS18x80 ● ● 543 80 1,357 1,357 1,086 1,357 1,086 18 40 36 27 40.11 38.76 37.41 39.30 46.30 DST- S M-274036DS18X80
DS18x100 ● ● 476 100 1.191 1.191 953 1.191 953 18 40 36 27 44.56 43.07 41.57 43.67 51.44 DST- S M-274036DS18X100
DS20x5 ● – 1.062 5 4,246 3,185 2,123 3,716 2,123 20 45 40 27 57.34 55.42 53.49 56.19 66.19 DST-JSRM-304540DS20X5 New
DS20x10 ● – 994 10 3.976 2,982 1,988 3,479 1,988 20 45 40 27 57.34 55.42 53.49 56.19 66.19 DST- SRM-304540DS20X10 New
DS20x20 ● ● 984 20 2,460 2,460 1,968 2,460 1,968 20 45 40 30 57.34 55.42 53.49 56.19 66.19 DST- S M-304540DS20X20
DS20x50 ● – 790 50 1,976 1,976 1,581 1,976 1,581 20 45 40 30 57.34 55.42 53.49 56.19 66.19 DST- S M-304540DS20X50
DS20x60 ● ● 663 60 1,657 1,657 1,325 1,657 1,325 20 45 40 30 57.34 55.42 53.49 56.19 66.19 DST- S M-304540DS20X60
DS20x80 ● ● 382 80 1,704 1,704 1,363 1,704 1,363 20 45 40 30 57.34 55.42 53.49 56.19 66.19 DST- S M-304540DS20X80
DS20x90 ● ● 663 90 1,657 1,657 1,325 1,657 1,325 20 45 40 30 57.34 55.42 53.49 56.19 66.19 DST- S M-304540DS20X90

156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)

ASEAN 09/2023 ASEAN 09/2023

404 Online tools and more information u www.igus-asean.com/dryspin 3D CAD files, prices and delivery time online u www.igus-asean.com/dryspin 405
