P. 395

dryspin       dryspin  technology | Lead screws | Product range New
                                 ®
              ®
      technology
                     dryspin  lead screws with spline
                              ®

                                                                Order key


                                                          Order example
                       L
                                   ZZZ       38 ±1
                               L
                                        ZZZ    38 ±1
 d1
         d1                                           Z
                                                      Z

                                 Z     Z                                                      Direction of rotation
                                        38 ±1                              Lead screws with
                                ZZZ               1.5x45°                                                   Stainless steel
                         serration run-out  38 ±1 usable serration
                        ZZZ                                      technology                          Total length
              serration run-out  usable serration  1.5x45°     dryspin ®     spline  Diameter  Pitch
                                        serration DIN 5481 - 7x8
                                                          ES: Stainless steel, rolled, AISI 304
                                     possible visible thread marks
                                   serration DIN 5481 - 7x8
                                                                Please contact us!
                               possible visible thread marks
                                                                Do you need an custom machined end or length of
                                                                your lead screw?
                                                                u www.igus-asean.com/lead-screw-configurator


        Technical data and dimensions
          Thread   d1     Pitch   Number of     Pitch     ZZZ     Weight Part No.
                            P       gears       angle
                   [mm]    [mm]                  [°]      [mm]      [kg]
         DS10x2    10       2         1         3.64       5.0     0.62   DST-LS-MOTK-10X2-R-1000-ES      New
         DS10x3    10       3         2         5.45       5.0     0.62   DST-LS-MOTK-10X3-R-1000-ES      New
         DS10x12   10       12        4         21.54      5.0     0.62   DST-LS-MOTK-10X12-R-1000-ES New
         DS10x25   10       25        8         38.51      5.0     0.62   DST-LS-MOTK-10X25-R-1000-ES New
         DS10x50   10       50        10        57.86      5.0     0.62   DST-LS-MOTK-10X50-R-1000-ES New                                            ®

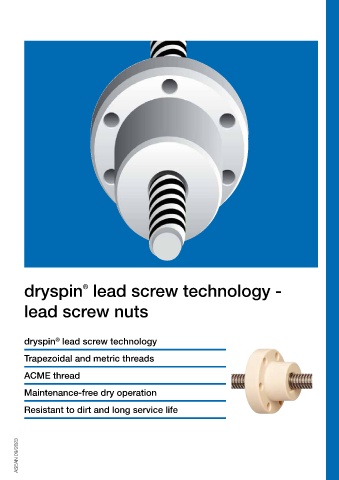

         DS12x5    12       5         2         7.55       6.5     0.89   DST-LS-MOTK-12X5-R-1000-ES      New                    dryspin  lead screw technology -
         DS12x15   12       15        5         21.20      6.5     0.89   DST-LS-MOTK-12X15-R-1000-ES New
         DS12x25   12       25        8         33.55      6.5     0.89   DST-LS-MOTK-12X25-R-1000-ES New                        lead screw nuts
         DS14x4    14       4         1         5.20       7.0     1.22   DST-LS-MOTK-14X4-R-1000-ES      New
         DS14x25   14       25        5         29.61      7.0     1.22   DST-LS-MOTK-14X25-R-1000-ES New
         DS18x4    18       4         1         4.04       8.0     2.01   DST-LS-MOTK-18X4-R-1000-ES      New                               ®
         DS18x24   18       24        6         22.99      8.0     2.01   DST-LS-MOTK-18X24-R-1000-ES New                        dryspin  lead screw technology
        Left-hand thread upon request                                                                                            Trapezoidal and metric threads


                                                                                                                                 ACME thread
               Lead screw motor expert:
               Assemble a complete system.                                                                                       Maintenance-free dry operation
               u www.igus-asean.com/DSE

                                                                                                                                 Resistant to dirt and long service life
               1,000mm fixed total length incl. machined end length - available from stock for individual further
               processing or assembly. A suitable force-diverting lead screw support must be ensured.


                                                                                                                   ASEAN 09/2023  ASEAN 09/2023




        392 Online tools and more information u www.igus-asean.com/dryspin
