dryspin                                                                                                                                                                                                                   dryspin
                                                                                                                                                                                                                                        ®
              ®
                                   ®
      trapezoidal    dryspin  TR | Lead screws | Product range                                                                                                                                                                  trapezoidal
        thread                                                                                                                                                                                                                    thread

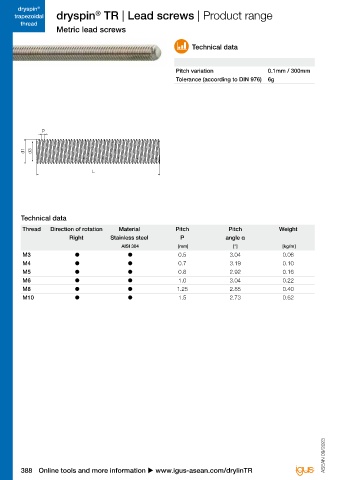

                     Metric lead screws
                                                                    Technical data                                                     Order key


                                                                                                                                 Part number  Thread         Options
                                                               Pitch variation                 0.1mm / 300mm
                                                               Tolerance (according to DIN 976)  6g
                                                                                                                                                                                      Options:
                                                                                                                                                                                      Length in mm: Freely selectable (see table)
                                                                                                                                                                                      Lead screw material
                                                                                                                                                                                      ES: Stainless steel, rolled, AISI 304

                                                                                                                                       Lead screw  Thread size  Thread pitches  Direction of rotation  Length [mm]  Lead screw material








                                                                                                                                       Please contact us!
                                                                                                                                       Do you need an individual configuration and/or machined end for your lead screw? This is not a problem with the
                                                                                                                                       help of the dryspin  lead screw configurator: configure lead screw at
                                                                                                                                                       ®
                                                                                                                                       u www.igus-asean.com/lead-screw-configurator



        Technical data                                                                                                           Dimensions [mm]

         Thread    Direction of rotation   Material            Pitch             Pitch             Weight                                   Outer Ø                       Core Ø                  Max.       Part No.
                         Right          Stainless steel         P               angle α                                                       d1                            d3                 Total length
                                            AISI 304           [mm]                [°]              [kg/m]                            min.           max.           min.          max.              L
         M3                                                     0.5               3.04              0.06                               2.8           3.0            2.2            2.3            1,000      PTGSG-M3-01-R-       -ES
         M4                                                     0.7               3.19              0.10                               3.8           4.0            2.9            3.1            1,000      PTGSG-M4-01-R-       -ES
         M5                                                     0.8               2.92              0.16                               4.8           4.9            3.8            4.0            1,000      PTGSG-M5-01-R-       -ES
         M6                                                     1.0               3.04              0.22                               5.7           5.9            4.5            4.7            1,000      PTGSG-M6-01-R-       -ES
         M8                                                    1.25               2.85              0.40                               7.8           8.0           6.47           6.65            1,000      PTGSG-M8-01-R-       -ES
         M10                                                    1.5               2.73              0.62                               9.8           10.0          8.16           8.38            1,000      PTGSG-M10-01-R-       -ES






























                                                                                                                   ASEAN 09/2023  ASEAN 09/2023




        388 Online tools and more information u www.igus-asean.com/drylinTR                                                               3D CAD files, prices and delivery time online u www.igus-asean.com/drylinTR               389
