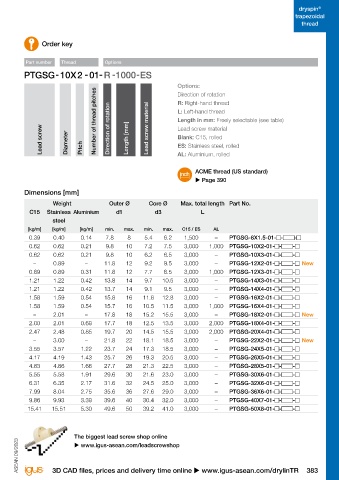

Page 385 - IGUS Linear

dryspin dryspin
®
®
®
trapezoidal dryspin TR | Lead screws | Product range trapezoidal
thread thread
Single start trapezoidal lead screw
Technical data Order key

CF15, rolled, AISI 1015 Part number Thread Options

Pitch variation 0.1mm / 300mm
Straightness (standard) 0.3mm / 300mm
Aligned (optional) <0.1mm / 300mm Options:
With machined end Aluminium, rolled (EN AW 6082) The tensile/compressive strength of the EN AW 6082 Lead screw Diameter Number of thread pitches Direction of rotation Length [mm] Lead screw material R: Right-hand thread
Direction of rotation
Stainless steel, rolled
Tolerance (according to DIN 103)
7e
L: Left-hand thread
Length in mm: Freely selectable (see table)
lead screw material is 160MPa (elongation limit 0.2mm).
Lead screw material
Blank: C15, rolled
Pitch
ES: Stainless steel, rolled
AL: Aluminium, rolled

ACME thread (US standard)
u Page 390
Technical data Dimensions [mm]

Thread Direction of rotation Material Pitch Pitch Weight Outer Ø Core Ø Max. total length Part No.
Right Left C15 Stainless Stainless Stainless Stainless Aluminium P angle C15 Stainless Aluminium d1 d3 L
steel steel steel steel α steel
AISI 304 AISI 303 AISI 316L AISI 321 EN AW 6082 [mm] [°] [kg/m] [kg/m] [kg/m] min. max. min. max. C15 / ES AL
Tr8x1.5 – – – – 1.5 3.42 0.39 0.40 0.14 7.8 8 5.4 6.2 1,500 – PTGSG-8X1.5-01- - -
Tr10x2 – – – 2 3.64 0.62 0.62 0.21 9.8 10 7.2 7.5 3,000 1,000 PTGSG-10X2-01- - -
Tr10x3 – – – – 3 5.45 0.62 0.62 0.21 9.8 10 6.2 6.5 3,000 – PTGSG-10X3-01- - -
Tr12x2 – – – – – – 2 3.04 – 0.89 – 11.8 12 9.2 9.5 3,000 – PTGSG-12X2-01- - - New
Tr12x3 – – – 3 4.55 0.89 0.89 0.31 11.8 12 7.7 8.5 3,000 1,000 PTGSG-12X3-01- - -
Tr14x3 – – – – 3 3.90 1.21 1.22 0.42 13.8 14 9.7 10.5 3,000 – PTGSG-14X3-01- - -
Tr14x4 – – – – 4 5.20 1.21 1.22 0.42 13.7 14 9.1 9.5 3,000 – PTGSG-14X4-01- - -
Tr16x2 – – – – 2 2,28 1.58 1.59 0.54 15.8 16 11.8 12.8 3,000 – PTGSG-16X2-01- - -
Tr16x4 – – – 4 4.55 1.58 1.59 0.54 15.7 16 10.5 11.5 3,000 1,000 PTGSG-16X4-01- - -
Tr18x2 – – – – – – 2 2.03 – 2.01 – 17.8 18 15.2 15.5 3,000 – PTGSG-18X2-01- - - New
Tr18x4 – – – 4 4.05 2.00 2.01 0.69 17.7 18 12.5 13.5 3,000 2,000 PTGSG-18X4-01- - -
Tr20x4 – – – 4 3.64 2.47 2.48 0.85 19.7 20 14.5 15.5 3,000 2,000 PTGSG-20X4-01- - -
Tr22x2 – – – – – 2 1.66 – 3.00 – 21.8 22 18.1 18.5 3,000 – PTGSG-22X2-01- - - New
Tr24x5 – – – – 5 3.79 3.55 3.57 1.22 23.7 24 17.3 18.5 3,000 – PTGSG-24X5-01- - -
Tr26x5 – – – – 5 3.50 4.17 4.19 1.43 25.7 26 19.3 20.5 3,000 – PTGSG-26X5-01- - -
Tr28x5 – – – – 5 3.25 4.83 4.86 1.66 27.7 28 21.3 22.5 3,000 – PTGSG-28X5-01- - -
Tr30x6 – – – – 6 3.64 5.55 5.58 1.91 29.6 30 21.6 23.0 3,000 – PTGSG-30X6-01- - -
Tr32x6 – – – – 6 3.42 6.31 6.35 2.17 31.6 32 24.5 25.0 3,000 – PTGSG-32X6-01- - -
Tr36x6 – – – – 6 3.04 7.99 8.04 2.75 35.6 36 27.6 29.0 3,000 – PTGSG-36X6-01- - -
Tr40x7 – – – – 7 3.19 9.86 9.93 3.39 39.6 40 30.4 32.0 3,000 – PTGSG-40X7-01- - -
Tr50x8 – – – – 8 2.92 15.41 15.51 5.30 49.6 50 39.2 41.0 3,000 – PTGSG-50X8-01- - -

Please contact us!
All dryspin leads screws can be custom machined. Please configure this online or send us your drawing. We The biggest lead screw shop online
®
can then provide a quick quotation. u www.igus-asean.com/leadscrewshop
u www.igus-asean.com/lead-screw-configurator ASEAN 09/2023 ASEAN 09/2023

382 Online tools and more information u www.igus-asean.com/drylinTR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinTR 383
