dryspin       dryspin  technology | Lead screws | Product range                                                                                                                                                           dryspin
                                  ®
                                                                                                                                                                                                                                        ®
              ®
      technology                                                                                                                                                                                                                technology
                     dryspin  lead screws - corrosion-resistant
                              ®

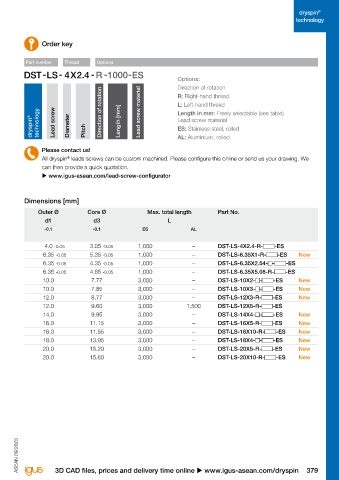

                                                                    Technical data                                                     Order key


                                                                                                                                 Part number   Thread     Options
                                                               Pitch variation         0.1mm / 300mm
                                                               Straightness (standard)  0.3mm / 300mm                                                                                 Options:
                                                               Aligned                 <0.1mm / 300mm                                                                                 Direction of rotation


        Stainless steel, rolled, AISI 304                     The tensile/compressive strength of the EN AW 6082                                                                      R: Right-hand thread
                                                                                                                                                                                      L: Left-hand thread
                                                              lead screw material is 160MPa (elongation limit 0.2mm).                                       Direction of rotation  Lead screw material  Length in mm: Freely selectable (see table)
                                                                                                                                   dryspin ®     technology  Lead screw  Diameter  Pitch  Length [mm]  Lead screw material
                                                                                                                                                                                      ES: Stainless steel, rolled
                                                                                                                                                                                      AL: Aluminium, rolled

                                                                                                                                       Please contact us!
                                                                                                                                       All dryspin  leads screws can be custom machined. Please configure this online or send us your drawing. We
                                                                                                                                                ®
                                                                                                                                       can then provide a quick quotation.
                                                                                                                                       u www.igus-asean.com/lead-screw-configurator



        Technical data                                                                                                           Dimensions [mm]

         Thread      Direction of rotation     Material        Pitch  Number  Pitch angle         Weight                             Outer Ø           Core Ø               Max. total length        Part No.
                       Right     Left    Stainless  Aluminium   P     of thread     α      Stainless  Aluminium                         d1               d3                        L
                                           steel                       pitches               steel                                      -0.1             -0.1             ES               AL
                                          AISI 304  EN AW 6082  [mm]                [°]      [kg/m]     [kg/m]
         Ds4x2.4         ●        –         ●          –        2.4       2       10.81      0.10         –                             4.0 -0.05       3.05 -0.05       1,000              –        DST-LS-4X2.4-R-    -ES
         Ds6.35x1        ●        –         ●          –         1        1        2.87      0.25         –                            6.35 -0.05       5.35 -0.05       1,000              –        DST-LS-6.35X1-R-     -ES    New
         Ds6.35x2.54     ●        ●         ●          –       2.54       2        7.26      0.25         –                            6.35 -0.05       4.35 -0.05       1,000              –        DST-LS-6.35X2.54- -     -ES
         Ds6.35x5.08     ●        –         ●          –       5.08       4       14.29      0.25         –                            6.35 -0.05       4.85 -0.05       1,000              –        DST-LS-6.35X5.08-R-    -ES
         Ds10x2          ●        ●         ●          –         2        1        3.64      0.62         –                            10.0             7.77             3,000              –        DST-LS-10X2- -     -ES      New
         Ds10x3          ●        ●         ●          –         3        2        5.45      0.62         –                            10.0             7.85             3,000              –        DST-LS-10X3- -     -ES      New
         Ds12x3          ●        –         ●          –         3        1        4.55      0.89         –                            12.0             8.77             3,000              –        DST-LS-12X3-R-     -ES      New
         Ds12x5          ●        –         ●          ●         5        2        7.55      0.89       0.31                           12.0             9.60             3,000            1,500      DST-LS-12X5-R-     -ES
         Ds14x4          ●        ●         ●          –         4        1        5.20      1.22         –                            14.0             9.95             3,000              –        DST-LS-14X4- -     -ES      New
         Ds16x5          ●        –         ●          –         5        1        5.68      1.59         –                            16.0             11.15            3,000              –        DST-LS-16X5-R-     -ES      New
         Ds16x10         ●        –         ●          –        10        2       11.25      1.59         –                            16.0             11.55            3,000              –        DST-LS-16X10-R-     -ES     New
         Ds18x4          ●        ●         ●          –         4        1        4.04      2.01         –                            18.0             13.95            3,000              –        DST-LS-18X4- -     -ES      New
         Ds20x5          ●        –         ●          –         5        1        4.55      2.48         –                            20.0             15.20            3,000              –        DST-LS-20X5-R-     -ES      New
         Ds20x10         ●        –         ●          –        10        2        9.04      2.48         –                            20.0             15.60            3,000              –        DST-LS-20X10-R-     -ES     New

















               Available from stock
               On request                                                                                          ASEAN 09/2023  ASEAN 09/2023

        378 Online tools and more information u www.igus-asean.com/dryspin                                                                 3D CAD files, prices and delivery time online u www.igus-asean.com/dryspin               379
