       dryspin       dryspin  technology | Lead screws | Product range                                                                                                                                                           dryspin
                                                                                                                                                                                                                                        ®
              ®
      technology                                                                                                                                                                                                                technology
                     dryspin  high helix lead screws - corrosion-resistant
                              ®

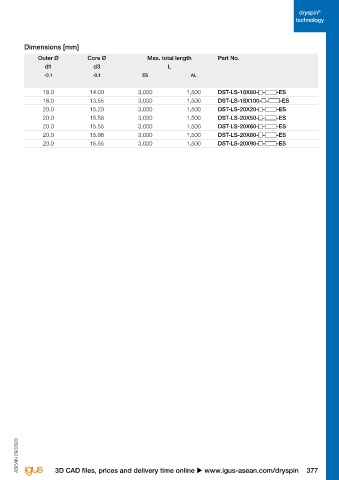

        Technical data                                                                                                           Dimensions [mm]

         Thread      Direction of rotation     Material        Pitch  Number  Pitch angle         Weight                             Outer Ø           Core Ø               Max. total length        Part No.
                        Right    Left    Stainless  Aluminium   P     of thread     α      Stainless  Aluminium                         d1               d3                        L
                                           steel                       pitches               steel                                      -0.1             -0.1             ES               AL
                                          AISI 304  EN AW 6082  [mm]                [°]      [kg/m]     [kg/m]
         Ds18x80         ●        ●         ●          ●        80       12       54.74      2.01       0.69                           18.0             14.00            3,000            1,500      DST-LS-18X80- -     -ES
         Ds18x100        ●        ●         ●          ●       100       12       60.51      2.01       0.69                           18.0             13.55            3,000            1,500      DST-LS-18X100- -     -ES
         Ds20x20         ●        ●         ●          ●        20        4       17.66      2.48       0.85                           20.0             15.20            3,000            1,500      DST-LS-20X20- -     -ES
         Ds20x50         ●         –        ●          ●        50        8       38.51      2.48       0.85                           20.0             15.58            3,000            1,500      DST-LS-20X50- -     -ES
         Ds20x60         ●        ●         ●          ●        60        8       43.68      2.48       0.85                           20.0             15.55            3,000            1,500      DST-LS-20X60- -     -ES
         Ds20x80         ●        ●         ●          ●        80       12       51.85      2.48       0.85                           20.0             15.98            3,000            1,500      DST-LS-20X80- -     -ES
         Dx20x90         ●        ●         ●          ●        90       12       55.08      2.48       0.85                           20.0             15.55            3,000            1,500      DST-LS-20X90- -     -ES
































































               Available from stock
               On request                                                                                          ASEAN 09/2023  ASEAN 09/2023
