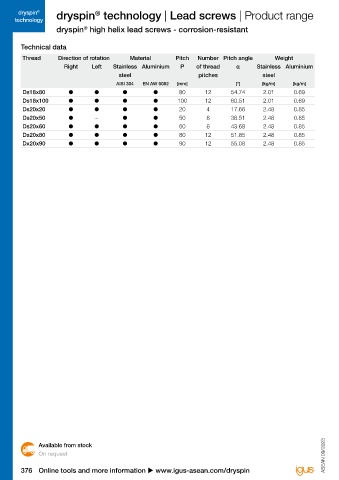

dryspin dryspin technology | Lead screws | Product range dryspin
®
®
technology technology
dryspin high helix lead screws - corrosion-resistant
®
Technical data Dimensions [mm]

Thread Direction of rotation Material Pitch Number Pitch angle Weight Outer Ø Core Ø Max. total length Part No.
Right Left Stainless Aluminium P of thread α Stainless Aluminium d1 d3 L
steel pitches steel -0.1 -0.1 ES AL
AISI 304 EN AW 6082 [mm] [°] [kg/m] [kg/m]
Ds18x80 ● ● ● ● 80 12 54.74 2.01 0.69 18.0 14.00 3,000 1,500 DST-LS-18X80- - -ES
Ds18x100 ● ● ● ● 100 12 60.51 2.01 0.69 18.0 13.55 3,000 1,500 DST-LS-18X100- - -ES
Ds20x20 ● ● ● ● 20 4 17.66 2.48 0.85 20.0 15.20 3,000 1,500 DST-LS-20X20- - -ES
Ds20x50 ● – ● ● 50 8 38.51 2.48 0.85 20.0 15.58 3,000 1,500 DST-LS-20X50- - -ES
Ds20x60 ● ● ● ● 60 8 43.68 2.48 0.85 20.0 15.55 3,000 1,500 DST-LS-20X60- - -ES
Ds20x80 ● ● ● ● 80 12 51.85 2.48 0.85 20.0 15.98 3,000 1,500 DST-LS-20X80- - -ES
Dx20x90 ● ● ● ● 90 12 55.08 2.48 0.85 20.0 15.55 3,000 1,500 DST-LS-20X90- - -ES

Available from stock
On request ASEAN 09/2023 ASEAN 09/2023
