dryspin dryspin technology | Lead screws | Product range dryspin
®
®
technology technology
dryspin high helix lead screw - with right/left opposite drive
®

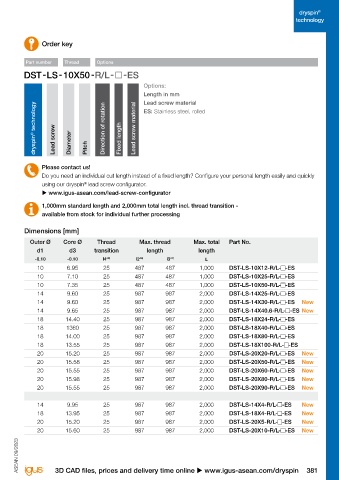

Order key

Part number Thread Options
Stainless steel, rolled, AISI 304

Options:
P
l2 l4 l3 Length in mm
dryspin ® technology Direction of rotation Lead screw material
d1 d3 Lead screw material
ES: Stainless steel, rolled
L

Connection glued with Loctite 648 Lead screw Diameter Pitch Fixed length
Connection glued with Loctite 648

Our reverse lead screws with dryspin thread Please contact us!
®
geometry are mechanically connected in a non- Do you need an individual cut length instead of a fixed length? Configure your personal length easily and quickly
positive and positive manner using metal adhesive using our dryspin lead screw configurator.
®
and dowel pins. u www.igus-asean.com/lead-screw-configurator
1,000mm standard length and 2,000mm total length incl. thread transition -
Connection pin
Connection pin
available from stock for individual further processing

®
Technical data - dryspin high helix lead screws Dimensions [mm]
Thread Max. transferable Max. Material Pitch Number Pitch angle Outer Ø Core Ø Thread Max. thread Max. total Part No.
torque tensile strength Stainless steel P of thread α d1 d3 transition length length
[Nm] [N] AISI 304 [mm] pitches [°] -0.10 -0.10 l4 46) l2 48) l3 47) L
Ds10x12 2.0 450 ● 12 4 21.54 10 6.95 25 487 487 1,000 DST-LS-10X12-R/L- -ES
Ds10x25 2.0 450 ● 25 8 38.51 10 7.10 25 487 487 1,000 DST-LS-10X25-R/L- -ES
Ds10x50 2.0 450 ● 50 10 57.86 10 7.35 25 487 487 1,000 DST-LS-10X50-R/L- -ES
Ds14x25 4.0 1,000 ● 25 5 29.61 14 9.60 25 987 987 2,000 DST-LS-14X25-R/L- -ES
Ds14x30 4.0 1,000 ● 30 6 34.30 14 9.60 25 987 987 2,000 DST-LS-14X30-R/L- -ES New
Ds14x40.6 4.0 1,000 ● 40.6 8 42.71 14 9.65 25 987 987 2,000 DST-LS-14X40.6-R/L- -ES New
Ds18x24 7.5 1,600 ● 24 6 22.99 18 14.40 25 987 987 2,000 DST-LS-18X24-R/L- -ES
Ds18x40 7.5 1,600 ● 40 8 35.55 18 1360 25 987 987 2,000 DST-LS-18X40-R/L- -ES
Ds18x80 7.5 1,600 ● 80 12 54.74 18 14.00 25 987 987 2,000 DST-LS-18X80-R/L- -ES
Ds18x100 7.5 1,600 ● 100 12 60.51 18 13.55 25 987 987 2,000 DST-LS-18X100-R/L- -ES
Ds20x20 11.0 2,500 ● 20 4 17.66 20 15.20 25 987 987 2,000 DST-LS-20X20-R/L- -ES New
Ds20x50 11.0 2,500 ● 50 8 38.51 20 15.58 25 987 987 2,000 DST-LS-20X50-R/L- -ES New
Ds20x60 11.0 2,500 ● 60 8 43.68 20 15.55 25 987 987 2,000 DST-LS-20X60-R/L- -ES New
Ds20x80 11.0 2,500 ● 80 12 51.85 20 15.98 25 987 987 2,000 DST-LS-20X80-R/L- -ES New
Ds20x90 11.0 2,500 ● 90 12 55.08 20 15.55 25 987 987 2,000 DST-LS-20X90-R/L- -ES New
®
dryspin lead screws
Ds14x4 4.0 1,000 ● 4 1 5.2 14 9.95 25 987 987 2,000 DST-LS-14X4-R/L- -ES New
Ds18x4 7.5 1,600 ● 4 1 4.04 18 13.95 25 987 987 2,000 DST-LS-18X4-R/L- -ES New
Ds20x5 11.0 2,500 ● 5 1 4.55 20 15.20 25 987 987 2,000 DST-LS-20X5-R/L- -ES New
Ds20x10 11.0 2,500 ● 10 2 9.04 20 15.60 25 987 987 2,000 DST-LS-20X10-R/L- -ES New
46) Non-usable thread transition
47) Fixed length (L)
48) Lead screw material ASEAN 09/2023 ASEAN 09/2023
