dryspin dryspin
®
®
®

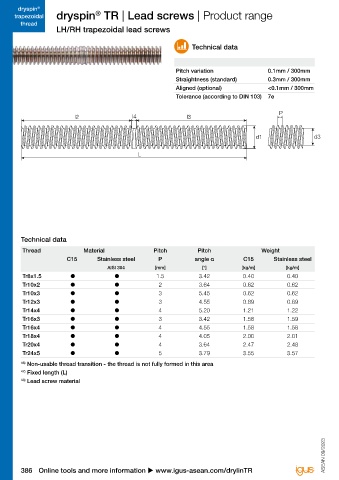

trapezoidal dryspin TR | Lead screws | Product range trapezoidal
thread thread
LH/RH trapezoidal lead screws
Technical data Order key

Part number Thread Options
Pitch variation 0.1mm / 300mm
Straightness (standard) 0.3mm / 300mm
Aligned (optional) <0.1mm / 300mm Options:
Tolerance (according to DIN 103) 7e Length in mm
Blank: C15, rolled, AISI 1015
P ES: Stainless steel, rolled, AISI 304
l2 l4 l3
Lead screw Diameter Reverse Fixed length
d1 d3 Thread pitches Lead screw material

L Pitch

Please contact us!
Do you need an individual cut length instead of a fixed length? Configure your personal length easily and quickly
using our dryspin lead screw configurator.
®
u www.igus-asean.com/lead-screw-configurator

1,000mm fixed length and 2,000mm total length incl. thread transition -
available from stock for individual further processing.

Technical data Dimensions [mm]
Thread Material Pitch Pitch Weight Outer Ø Core Ø Thread Max. Part No.
C15 Stainless steel P angle α C15 Stainless steel d1 d3 transition total length
AISI 304 [mm] [°] [kg/m] [kg/m] min. max. min. max. l4 46) L
Tr8x1.5 1.5 3.42 0.40 0.40 7.0 8 5.4 6.2 25 1,000 PTGSG-8X1.5-01-R/L- - 48) New
47)
Tr10x2 2 3.64 0.62 0.62 9.8 10 7.2 7.5 20 1,000 PTGSG-10X2-01-R/L- - 48)
47)
Tr10x3 3 5.45 0.62 0.62 9.8 10 6.2 6.5 45 1,000 PTGSG-10X3-01-R/L- - 48) New
47)
Tr12x3 3 4.55 0.89 0.89 11.8 12 7.7 8.5 45 1,000 PTGSG-12X3-01-R/L- - 48)
47)
Tr14x4 4 5.20 1.21 1.22 13.7 14 9.1 9.5 60 1,000 PTGSG-14X4-01-R/L- - 48)
47)
Tr16x3 3 3.42 1.58 1.59 15.8 16 11.8 12.8 60 1,000 PTGSG-16X3-01-R/L- - 48) New
47)
Tr16x4 4 4.55 1.58 1.58 15.7 16 10.5 11.5 60 1,000 PTGSG-16X4-01-R/L- - 48)
47)
Tr18x4 4 4.05 2.00 2.01 17.7 18 12.5 13.5 80 2,000 PTGSG-18X4-01-R/L- - 48)
47)
Tr20x4 4 3.64 2.47 2.48 19.7 20 14.5 15.5 80 2,000 PTGSG-20X4-01-R/L- - 48)
47)
Tr24x5 5 3.79 3.55 3.57 23.7 24 17.3 18.5 90 2,000 PTGSG-24X5-01-R/L- - 48)
47)
46) Non-usable thread transition - the thread is not fully formed in this area
47) Fixed length (L)
48) Lead screw material
