trapezoidal dryspin TR | Lead screws | Product range trapezoidal
thread thread
Metric lead screws

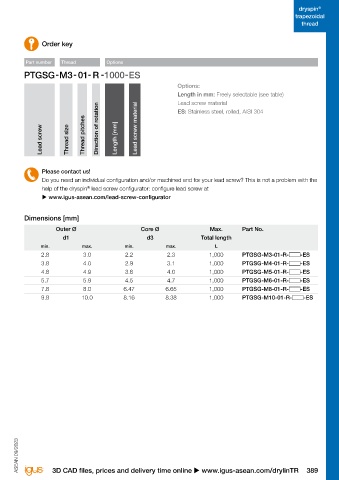

Technical data Order key

Part number Thread Options
Pitch variation 0.1mm / 300mm
Tolerance (according to DIN 976) 6g
Options:
Length in mm: Freely selectable (see table)
Lead screw material
ES: Stainless steel, rolled, AISI 304

Lead screw Thread size Thread pitches Direction of rotation Length [mm] Lead screw material

Please contact us!
Do you need an individual configuration and/or machined end for your lead screw? This is not a problem with the
help of the dryspin lead screw configurator: configure lead screw at
®
u www.igus-asean.com/lead-screw-configurator

Technical data Dimensions [mm]

Thread Direction of rotation Material Pitch Pitch Weight Outer Ø Core Ø Max. Part No.
Right Stainless steel P angle α d1 d3 Total length
AISI 304 [mm] [°] [kg/m] min. max. min. max. L
M3 0.5 3.04 0.06 2.8 3.0 2.2 2.3 1,000 PTGSG-M3-01-R- -ES
M4 0.7 3.19 0.10 3.8 4.0 2.9 3.1 1,000 PTGSG-M4-01-R- -ES
M5 0.8 2.92 0.16 4.8 4.9 3.8 4.0 1,000 PTGSG-M5-01-R- -ES
M6 1.0 3.04 0.22 5.7 5.9 4.5 4.7 1,000 PTGSG-M6-01-R- -ES
M8 1.25 2.85 0.40 7.8 8.0 6.47 6.65 1,000 PTGSG-M8-01-R- -ES
M10 1.5 2.73 0.62 9.8 10.0 8.16 8.38 1,000 PTGSG-M10-01-R- -ES
