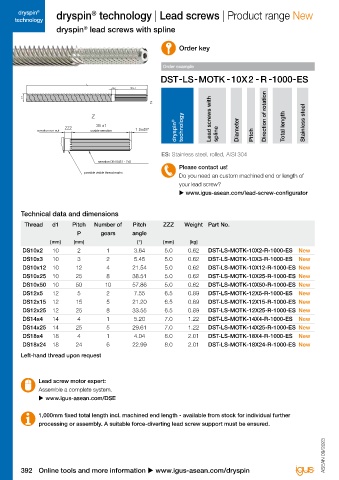

Page 394 - IGUS Linear

dryspin dryspin technology | Lead screws | Product range New
®
®
technology
dryspin lead screws with spline
®

Order key

Order example
L
ZZZ 38 ±1
L
ZZZ 38 ±1
d1
d1 Z
Z

Z Z Direction of rotation
38 ±1 Lead screws with
ZZZ 1.5x45° Stainless steel
serration run-out 38 ±1 usable serration
ZZZ technology Total length
serration run-out usable serration 1.5x45° dryspin ® spline Diameter Pitch
serration DIN 5481 - 7x8
ES: Stainless steel, rolled, AISI 304
possible visible thread marks
serration DIN 5481 - 7x8
Please contact us!
possible visible thread marks
Do you need an custom machined end or length of
your lead screw?
u www.igus-asean.com/lead-screw-configurator

Technical data and dimensions
Thread d1 Pitch Number of Pitch ZZZ Weight Part No.
P gears angle
[mm] [mm] [°] [mm] [kg]
DS10x2 10 2 1 3.64 5.0 0.62 DST-LS-MOTK-10X2-R-1000-ES New
DS10x3 10 3 2 5.45 5.0 0.62 DST-LS-MOTK-10X3-R-1000-ES New
DS10x12 10 12 4 21.54 5.0 0.62 DST-LS-MOTK-10X12-R-1000-ES New
DS10x25 10 25 8 38.51 5.0 0.62 DST-LS-MOTK-10X25-R-1000-ES New
DS10x50 10 50 10 57.86 5.0 0.62 DST-LS-MOTK-10X50-R-1000-ES New ®
DS12x5 12 5 2 7.55 6.5 0.89 DST-LS-MOTK-12X5-R-1000-ES New dryspin lead screw technology -
DS12x15 12 15 5 21.20 6.5 0.89 DST-LS-MOTK-12X15-R-1000-ES New
DS12x25 12 25 8 33.55 6.5 0.89 DST-LS-MOTK-12X25-R-1000-ES New lead screw nuts
DS14x4 14 4 1 5.20 7.0 1.22 DST-LS-MOTK-14X4-R-1000-ES New
DS14x25 14 25 5 29.61 7.0 1.22 DST-LS-MOTK-14X25-R-1000-ES New
DS18x4 18 4 1 4.04 8.0 2.01 DST-LS-MOTK-18X4-R-1000-ES New ®
DS18x24 18 24 6 22.99 8.0 2.01 DST-LS-MOTK-18X24-R-1000-ES New dryspin lead screw technology
Left-hand thread upon request Trapezoidal and metric threads

ACME thread
Lead screw motor expert:
Assemble a complete system. Maintenance-free dry operation
u www.igus-asean.com/DSE

Resistant to dirt and long service life
1,000mm fixed total length incl. machined end length - available from stock for individual further
processing or assembly. A suitable force-diverting lead screw support must be ensured.
