dryspin dryspin technology | Lead screws | Product range dryspin
®
®
®
technology technology

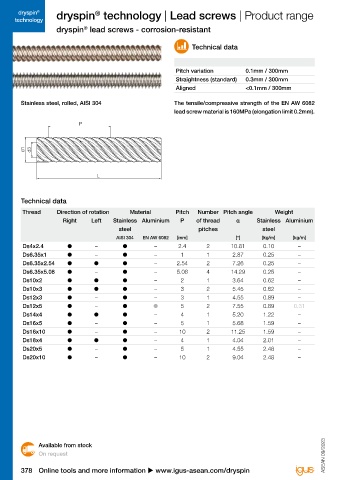

dryspin lead screws - corrosion-resistant
®
Technical data Order key

Part number Thread Options
Pitch variation 0.1mm / 300mm
Straightness (standard) 0.3mm / 300mm Options:
Aligned <0.1mm / 300mm Direction of rotation

Stainless steel, rolled, AISI 304 The tensile/compressive strength of the EN AW 6082 R: Right-hand thread
L: Left-hand thread
lead screw material is 160MPa (elongation limit 0.2mm). Direction of rotation Lead screw material Length in mm: Freely selectable (see table)
dryspin ® technology Lead screw Diameter Pitch Length [mm] Lead screw material
ES: Stainless steel, rolled
AL: Aluminium, rolled

Please contact us!
All dryspin leads screws can be custom machined. Please configure this online or send us your drawing. We
®
can then provide a quick quotation.
u www.igus-asean.com/lead-screw-configurator

Technical data Dimensions [mm]

Thread Direction of rotation Material Pitch Number Pitch angle Weight Outer Ø Core Ø Max. total length Part No.
Right Left Stainless Aluminium P of thread α Stainless Aluminium d1 d3 L
steel pitches steel -0.1 -0.1 ES AL
AISI 304 EN AW 6082 [mm] [°] [kg/m] [kg/m]
Ds4x2.4 ● – ● – 2.4 2 10.81 0.10 – 4.0 -0.05 3.05 -0.05 1,000 – DST-LS-4X2.4-R- -ES
Ds6.35x1 ● – ● – 1 1 2.87 0.25 – 6.35 -0.05 5.35 -0.05 1,000 – DST-LS-6.35X1-R- -ES New
Ds6.35x2.54 ● ● ● – 2.54 2 7.26 0.25 – 6.35 -0.05 4.35 -0.05 1,000 – DST-LS-6.35X2.54- - -ES
Ds6.35x5.08 ● – ● – 5.08 4 14.29 0.25 – 6.35 -0.05 4.85 -0.05 1,000 – DST-LS-6.35X5.08-R- -ES
Ds10x2 ● ● ● – 2 1 3.64 0.62 – 10.0 7.77 3,000 – DST-LS-10X2- - -ES New
Ds10x3 ● ● ● – 3 2 5.45 0.62 – 10.0 7.85 3,000 – DST-LS-10X3- - -ES New
Ds12x3 ● – ● – 3 1 4.55 0.89 – 12.0 8.77 3,000 – DST-LS-12X3-R- -ES New
Ds12x5 ● – ● ● 5 2 7.55 0.89 0.31 12.0 9.60 3,000 1,500 DST-LS-12X5-R- -ES
Ds14x4 ● ● ● – 4 1 5.20 1.22 – 14.0 9.95 3,000 – DST-LS-14X4- - -ES New
Ds16x5 ● – ● – 5 1 5.68 1.59 – 16.0 11.15 3,000 – DST-LS-16X5-R- -ES New
Ds16x10 ● – ● – 10 2 11.25 1.59 – 16.0 11.55 3,000 – DST-LS-16X10-R- -ES New
Ds18x4 ● ● ● – 4 1 4.04 2.01 – 18.0 13.95 3,000 – DST-LS-18X4- - -ES New
Ds20x5 ● – ● – 5 1 4.55 2.48 – 20.0 15.20 3,000 – DST-LS-20X5-R- -ES New
Ds20x10 ● – ● – 10 2 9.04 2.48 – 20.0 15.60 3,000 – DST-LS-20X10-R- -ES New

Available from stock
On request ASEAN 09/2023 ASEAN 09/2023
