dryspin dryspin technology | Lead screws | Product range dryspin
®
®
technology technology
dryspin high helix lead screws - corrosion-resistant
®

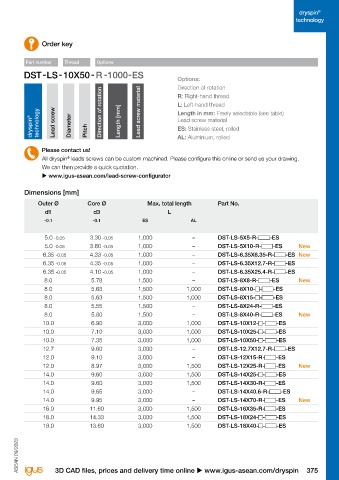

Technical data Order key
Part number Thread Options
Stainless steel, rolled, AISI 304 Pitch variation 0.1mm / 300mm
Straightness (standard) 0.3mm / 300mm Options:
Aligned <0.1mm / 300mm Direction of rotation
The tensile/compressive strength of the EN AW 6082 R: Right-hand thread
L: Left-hand thread
Aluminium, rolled (EN AW 6082) lead screw material is 160MPa (elongation limit 0.2mm). Direction of rotation Lead screw material Length in mm: Freely selectable (see table)
dryspin ® technology Lead screw Diameter Pitch Length [mm] Lead screw material
ES: Stainless steel, rolled
AL: Aluminium, rolled
Please contact us!
All dryspin leads screws can be custom machined. Please configure this online or send us your drawing.
®
We can then provide a quick quotation.
u www.igus-asean.com/lead-screw-configurator
Technical data Dimensions [mm]
Thread Direction of rotation Material Pitch Number Pitch angle Weight Outer Ø Core Ø Max. total length Part No.
Right Left Stainless Aluminium P of thread α Stainless Aluminium d1 d3 L
steel pitches steel -0.1 -0.1 ES AL
AISI 304 EN AW 6082 [mm] [°] [kg/m] [kg/m]
Ds5x5 ● – ● – 5 2 17.66 0.16 – 5.0 -0.05 3.30 -0.05 1,000 – DST-LS-5X5-R- -ES
Ds5x10 ● – ● – 10 4 32.48 0.16 – 5.0 -0.05 3.80 -0.05 1,000 – DST-LS-5X10-R- -ES New
Ds6.35x6.35 ● – ● – 6.35 3 17.66 0.25 – 6.35 -0.05 4.33 -0.05 1,000 – DST-LS-6.35X6.35-R- -ES New
Ds6.35x12.7 ● – ● – 12.7 4 32.48 0.25 – 6.35 -0.05 4.35 -0.05 1,000 – DST-LS-6.35X12.7-R- -ES
Ds6.35x25.4 ● – ● – 25.4 8 51.85 0.25 – 6.35 -0.05 4.10 -0.05 1,000 – DST-LS-6.35X25.4-R- -ES
Ds8x8 ● – ● – 8 4 17.66 0.40 – 8.0 5.78 1,500 – DST-LS-8X8-R- -ES New
Ds8x10 ● ● ● ● 10 4 21.70 0.40 0.14 8.0 5.63 1,500 1,000 DST-LS-8X10- - -ES
Ds8x15 ● ● ● ● 15 6 30.83 0.40 0.14 8.0 5.63 1,500 1,000 DST-LS-8X15- - -ES
Ds8x24 ● – ● – 24 8 43.78 0.40 – 8.0 5.55 1,500 – DST-LS-8X24-R- -ES
Ds8x40 ● – ● – 40 8 57.86 0.40 – 8.0 5.80 1,500 – DST-LS-8X40-R- -ES New
Ds10x12 ● ● ● ● 12 4 21.54 0.62 0.21 10.0 6.90 3,000 1,000 DST-LS-10X12- - -ES
Ds10x25 ● ● ● ● 25 8 38.51 0.62 0.21 10.0 7.10 3,000 1,000 DST-LS-10X25- - -ES
Ds10x50 ● ● ● ● 50 10 57.86 0.62 0.21 10.0 7.35 3,000 1,000 DST-LS-10X50- - -ES
Ds12.7x12.7 ● – ● – 12.7 4 17.66 1.00 – 12.7 9.60 3,000 – DST-LS-12.7X12.7-R- -ES
Ds12x15 ● – ● – 15 5 21.69 0.89 – 12.0 9.10 3,000 – DST-LS-12X15-R- -ES
Ds12x25 ● ● ● ● 25 8 33.55 0.89 0.31 12.0 8.97 3,000 1,500 DST-LS-12X25-R- -ES New
Ds14x25 ● ● ● ● 25 5 29.61 1.22 0.42 14.0 9.60 3,000 1,500 DST-LS-14X25- - -ES
Ds14x30 ● – ● ● 30 6 34.30 1.22 0.42 14.0 9.60 3,000 1,500 DST-LS-14X30-R- -ES
Ds14x40.6 ● – ● – 40.6 8 42.71 1.22 – 14.0 9.65 3,000 – DST-LS-14X40.6-R- -ES
Ds14x70 ● – ● – 70 8 57.86 1.22 – 14.0 9.95 3,000 – DST-LS-14X70-R- -ES New
Ds16x35 ● – ● ● 35 7 34.85 1.59 0.54 16.0 11.60 3,000 1,500 DST-LS-16X35-R- -ES
Ds18x24 ● ● ● ● 24 6 22.99 2.01 0.69 18.0 14.33 3,000 1,500 DST-LS-18X24- - -ES
Ds18x40 ● ● ● ● 40 8 35.55 2.01 0.69 18.0 13.60 3,000 1,500 DST-LS-18X40- - -ES
Available from stock
On request ASEAN 09/2023 ASEAN 09/2023
