P. 634
®
®
drylin drylin E | Motors | Product range drylin E | Motors | Product range drylin
®
®
motors motors

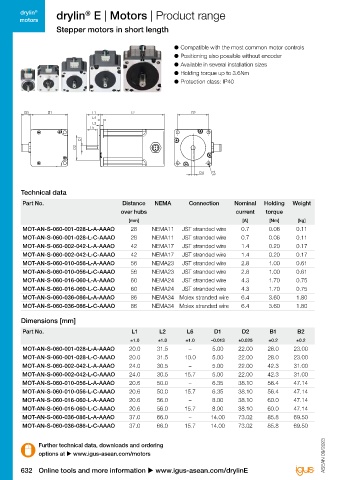

Stepper motors in short length Stepper motors in medium length as standard
● Compatible with the most common motor controls ● Compatible with the most common motor controls
● Positioning also possible without encoder ● Positioning also possible without encoder
● Available in several installation sizes ● Available in several installation sizes
● Holding torque up to 3.6Nm ● Holding torque up to 5.9Nm
● Protection class: IP40 ● Protection class: IP40 or IP52
B3 B3 B3 B1 B1 B1 L1 L1 L1 L2 L2 L2 B2 B2 B2 B3 B3 B3 B1 B1 B1 L1 L1 L1 L2 L2 L2 B2 B2 B2
L4 L4 L4 L4 L4 L4
L3 L3 L3 L3 L3 L3
L5 L5 L5 L5 L5 L5
D1 D1 D1 D1 D1 D1
D2 D2 D2 D2 D2 D2
D4 D4 D3 D4 D3 D3 D4 D4 D3 D4 D3 D3
Technical data Technical data
Part No. Distance NEMA Connection Nominal Holding Weight Part No. Distance NEMA Connection Nominal Holding Weight
over hubs current torque over hubs current torque
[mm] [A] [Nm] [kg] [mm] [A] [Nm] [kg]
MOT-AN-S-060-001-028-L-A-AAAO 28 NEMA11 JST stranded wire 0.7 0.06 0.11 MOT-AN-S-060-001-028-L-A-AAAA 28 NEMA11 JST stranded wire 1.0 0.12 0.20
MOT-AN-S-060-001-028-L-C-AAAO 28 NEMA11 JST stranded wire 0.7 0.06 0.11 MOT-AN-S-060-001-028-M-A-AAAA 28 NEMA11 Metric 1.0 0.12 0.22
MOT-AN-S-060-002-042-L-A-AAAO 42 NEMA17 JST stranded wire 1.4 0.20 0.17 MOT-AN-S-060-005-042-L-A-AAAA 42 NEMA17 JST stranded wire 1.8 0.50 0.38
MOT-AN-S-060-002-042-L-C-AAAO 42 NEMA17 JST stranded wire 1.4 0.20 0.17 MOT-AN-S-060-005-042-M-A-AAAA 42 NEMA17 Metric 1.8 0.50 0.43
MOT-AN-S-060-010-056-L-A-AAAO 56 NEMA23 JST stranded wire 2.8 1.00 0.61 MOT-AN-S-060-020-056-L-A-AAAA 56 NEMA23 JST stranded wire 4.2 2.00 1.04
MOT-AN-S-060-010-056-L-C-AAAO 56 NEMA23 JST stranded wire 2.8 1.00 0.61 MOT-AN-S-060-020-056-M-A-AAAA 56 NEMA23 Metric 4.2 2.00 1.12
MOT-AN-S-060-016-060-L-A-AAAO 60 NEMA24 JST stranded wire 4.3 1.70 0.75 MOT-AN-S-060-035-060-L-A-AAAA 60 NEMA24 JST stranded wire 4.2 3.50 1.45
MOT-AN-S-060-016-060-L-C-AAAO 60 NEMA24 JST stranded wire 4.3 1.70 0.75 MOT-AN-S-060-035-060-M-A-AAAA 60 NEMA24 Metric 4.2 3.50 1.56
MOT-AN-S-060-036-086-L-A-AAAO 86 NEMA34 Molex stranded wire 6.4 3.60 1.80 MOT-AN-S-060-059-086-L-A-AAAA 86 NEMA34 Molex stranded wire 6.4 5.90 2.90
MOT-AN-S-060-036-086-L-C-AAAO 86 NEMA34 Molex stranded wire 6.4 3.60 1.80 MOT-AN-S-060-059-086-M-A-AAAA 86 NEMA34 Metric 6.4 5.90 3.20
Dimensions [mm] Dimensions [mm]
Part No. L1 L2 L6 D1 D2 B1 B2 Part No. L1 L2 D1 D2 B1 B2 B3
±1.0 ±1.0 ±1.0 –0.013 ±0.025 ±0.2 ±0.2 ±1.0 ±1.0 –0.013 ±0.025 ±0.2 ±0.2
MOT-AN-S-060-001-028-L-A-AAAO 20.0 31.5 – 5.00 22.00 28.0 23.00 MOT-AN-S-060-001-028-L-A-AAAA 20.0 50 5.00 22.00 28.0 23.00 –
MOT-AN-S-060-001-028-L-C-AAAO 20.0 31.5 10.0 5.00 22.00 28.0 23.00 MOT-AN-S-060-001-028-M-A-AAAA 20.0 70 5.00 22.00 28.0 23.00 13.0
MOT-AN-S-060-002-042-L-A-AAAO 24.0 30.5 – 5.00 22.00 42.3 31.00 MOT-AN-S-060-005-042-L-A-AAAA 24.0 49 5.00 22.00 42.3 31.00 –
MOT-AN-S-060-002-042-L-C-AAAO 24.0 30.5 15.7 5.00 22.00 42.3 31.00 MOT-AN-S-060-005-042-M-A-AAAA 24.0 70 5.00 22.00 42.3 31.00 13.0
MOT-AN-S-060-010-056-L-A-AAAO 20.6 50.0 – 6.35 38.10 56.4 47.14 MOT-AN-S-060-020-056-L-A-AAAA 20.6 76 6.35 38.10 56.4 47.14 –
MOT-AN-S-060-010-056-L-C-AAAO 20.6 50.0 15.7 6.35 38.10 56.4 47.14 MOT-AN-S-060-020-056-M-A-AAAA 20.6 98 6.35 38.10 56.4 47.14 13.0
MOT-AN-S-060-016-060-L-A-AAAO 20.6 56.0 – 8.00 38.10 60.0 47.14 MOT-AN-S-060-035-060-L-A-AAAA 20.6 88 8.00 38.10 60.0 47.14 9.0
MOT-AN-S-060-016-060-L-C-AAAO 20.6 56.0 15.7 8.00 38.10 60.0 47.14 MOT-AN-S-060-035-060-M-A-AAAA 20.6 112 8.00 38.10 60.0 47.14 13.0
MOT-AN-S-060-036-086-L-A-AAAO 37.0 66.0 – 14.00 73.02 85.8 69.50 MOT-AN-S-060-059-086-L-A-AAAA 37.0 98 14.00 73.02 85.8 69.50 –
MOT-AN-S-060-036-086-L-C-AAAO 37.0 66.0 15.7 14.00 73.02 85.8 69.50 MOT-AN-S-060-059-086-M-A-AAAA 37.0 118 14.00 73.02 85.8 69.50 37.0
Further technical data, downloads and ordering Further technical data, downloads and ordering
options at u www.igus-asean.com/motors ASEAN 09/2023 ASEAN 09/2023 options at u www.igus-asean.com/motors
632 Online tools and more information u www.igus-asean.com/drylinE 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE 633
