 drylin     drylin  E | Motors | Product range   drylin  E | Motors | Product range                        drylin
                                                                                                                ®
 ®
 motors                                                                                                    motors

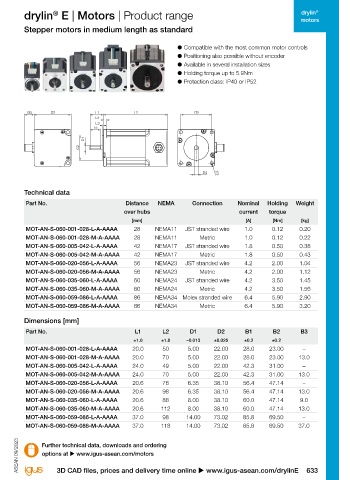

 Stepper motors in short length  Stepper motors in medium length as standard
 ● 	Compatible with the most common motor controls             ● 	Compatible with the most common motor controls
 ● 	Positioning also possible without encoder                  ● 	Positioning also possible without encoder
 ● 	Available in several installation sizes                    ● 	Available in several installation sizes
 ● 	Holding torque up to 3.6Nm                                 ● 	Holding torque up to 5.9Nm
 ● 	Protection class: IP40                                     ● 	Protection class: IP40 or IP52





 B3  B3  B3 B1  B1  B1  L1  L1  L1  L2  L2  L2  B2  B2  B2  B3  B3  B3 B1  B1  B1  L1  L1  L1  L2  L2  L2  B2  B2  B2
 L4  L4  L4                     L4  L4  L4
 L3  L3  L3                     L3  L3  L3
 L5  L5  L5                    L5  L5  L5
 D1  D1  D1                 D1  D1  D1
 D2  D2  D2               D2  D2  D2



 D4  D4  D3 D4 D3  D3                                                   D4  D4  D3  D4 D3  D3


 Technical data  Technical data

 Part No.  Distance   NEMA  Connection  Nominal   Holding   Weight  Part No.  Distance   NEMA  Connection  Nominal   Holding   Weight
 over hubs  current   torque                 over hubs                               current    torque
 [mm]  [A]  [Nm]  [kg]                         [mm]                                    [A]       [Nm]      [kg]
 MOT-AN-S-060-001-028-L-A-AAAO  28  NEMA11  JST stranded wire   0.7  0.06  0.11  MOT-AN-S-060-001-028-L-A-AAAA  28  NEMA11  JST stranded wire   1.0  0.12  0.20
 MOT-AN-S-060-001-028-L-C-AAAO  28  NEMA11  JST stranded wire   0.7  0.06  0.11  MOT-AN-S-060-001-028-M-A-AAAA  28  NEMA11  Metric  1.0  0.12  0.22
 MOT-AN-S-060-002-042-L-A-AAAO  42  NEMA17  JST stranded wire   1.4  0.20  0.17  MOT-AN-S-060-005-042-L-A-AAAA  42  NEMA17  JST stranded wire   1.8  0.50  0.38
 MOT-AN-S-060-002-042-L-C-AAAO  42  NEMA17  JST stranded wire   1.4  0.20  0.17  MOT-AN-S-060-005-042-M-A-AAAA  42  NEMA17  Metric  1.8  0.50  0.43
 MOT-AN-S-060-010-056-L-A-AAAO  56  NEMA23  JST stranded wire   2.8  1.00  0.61  MOT-AN-S-060-020-056-L-A-AAAA  56  NEMA23  JST stranded wire   4.2  2.00  1.04
 MOT-AN-S-060-010-056-L-C-AAAO  56  NEMA23  JST stranded wire   2.8  1.00  0.61  MOT-AN-S-060-020-056-M-A-AAAA  56  NEMA23  Metric  4.2  2.00  1.12
 MOT-AN-S-060-016-060-L-A-AAAO  60  NEMA24  JST stranded wire   4.3  1.70  0.75  MOT-AN-S-060-035-060-L-A-AAAA  60  NEMA24  JST stranded wire   4.2  3.50  1.45
 MOT-AN-S-060-016-060-L-C-AAAO  60  NEMA24  JST stranded wire   4.3  1.70  0.75  MOT-AN-S-060-035-060-M-A-AAAA  60  NEMA24  Metric  4.2  3.50  1.56
 MOT-AN-S-060-036-086-L-A-AAAO  86  NEMA34 Molex stranded wire  6.4  3.60  1.80  MOT-AN-S-060-059-086-L-A-AAAA  86  NEMA34 Molex stranded wire  6.4  5.90  2.90
 MOT-AN-S-060-036-086-L-C-AAAO  86  NEMA34 Molex stranded wire  6.4  3.60  1.80  MOT-AN-S-060-059-086-M-A-AAAA  86  NEMA34  Metric  6.4  5.90  3.20

 Dimensions [mm]  Dimensions [mm]

 Part No.  L1  L2  L6  D1  D2  B1  B2  Part No.  L1       L2        D1       D2        B1        B2        B3
 ±1.0  ±1.0  ±1.0  –0.013  ±0.025  ±0.2  ±0.2   ±1.0      ±1.0     –0.013   ±0.025     ±0.2      ±0.2
 MOT-AN-S-060-001-028-L-A-AAAO  20.0  31.5  –  5.00  22.00  28.0  23.00  MOT-AN-S-060-001-028-L-A-AAAA  20.0  50  5.00  22.00  28.0  23.00  –
 MOT-AN-S-060-001-028-L-C-AAAO  20.0  31.5  10.0  5.00  22.00  28.0  23.00  MOT-AN-S-060-001-028-M-A-AAAA  20.0  70  5.00  22.00  28.0  23.00  13.0
 MOT-AN-S-060-002-042-L-A-AAAO  24.0  30.5  –  5.00  22.00  42.3  31.00  MOT-AN-S-060-005-042-L-A-AAAA  24.0  49  5.00  22.00  42.3  31.00  –
 MOT-AN-S-060-002-042-L-C-AAAO  24.0  30.5  15.7  5.00  22.00  42.3  31.00  MOT-AN-S-060-005-042-M-A-AAAA  24.0  70  5.00  22.00  42.3  31.00  13.0
 MOT-AN-S-060-010-056-L-A-AAAO  20.6  50.0  –  6.35  38.10  56.4  47.14  MOT-AN-S-060-020-056-L-A-AAAA  20.6  76  6.35  38.10  56.4  47.14  –
 MOT-AN-S-060-010-056-L-C-AAAO  20.6  50.0  15.7  6.35  38.10  56.4  47.14  MOT-AN-S-060-020-056-M-A-AAAA  20.6  98  6.35  38.10  56.4  47.14  13.0
 MOT-AN-S-060-016-060-L-A-AAAO  20.6  56.0  –  8.00  38.10  60.0  47.14  MOT-AN-S-060-035-060-L-A-AAAA  20.6  88  8.00  38.10  60.0  47.14  9.0
 MOT-AN-S-060-016-060-L-C-AAAO  20.6  56.0  15.7  8.00  38.10  60.0  47.14  MOT-AN-S-060-035-060-M-A-AAAA  20.6  112  8.00  38.10  60.0  47.14  13.0
 MOT-AN-S-060-036-086-L-A-AAAO  37.0  66.0  –  14.00  73.02  85.8  69.50  MOT-AN-S-060-059-086-L-A-AAAA  37.0  98  14.00  73.02  85.8  69.50  –
 MOT-AN-S-060-036-086-L-C-AAAO  37.0  66.0  15.7  14.00  73.02  85.8  69.50  MOT-AN-S-060-059-086-M-A-AAAA  37.0  118  14.00  73.02  85.8  69.50  37.0



 Further technical data, downloads and ordering   Further technical data, downloads and ordering
 options at u www.igus-asean.com/motors  ASEAN 09/2023  ASEAN 09/2023  options at u www.igus-asean.com/motors

 632 Online tools and more information u www.igus-asean.com/drylinE     3D CAD files, prices and delivery time online u www.igus-asean.com/drylinE  633
