Low Cost robolink RL-DP | Robot arm
Automation
Splash-proof 5-axis robot robolink RL-DP-SW
®

● Splash-proof thanks to protection class IP 44
● Tribologically optimised robot joints
● Joining links made of stainless steel
● Software available free of charge
®
● igus Robot Control u Page 718

Test the software free of charge

Technical data

4 DOF 168) 5 DOF 168)
Part No. RL-DP-4-SW-24 RL-DP-5-SW-24
Payload [N] 20 20
Speed [Picks/min] 7 7
Workspace [mm] 790 790
Nominal reach [mm] 450 450
Weight [kg] 23.6 23.6
Payload [kg] 2 3
Precision (repeatability) [mm] ±0.5 ±0.5

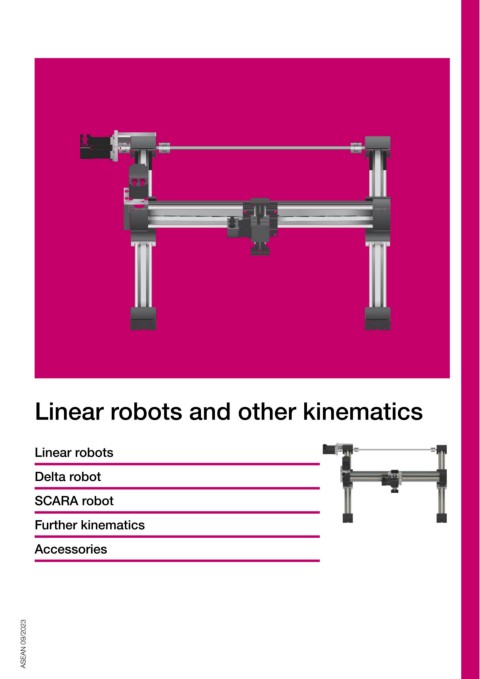

Max. speed (TCP) [m/s] 0.2 0.2 Linear robots and other kinematics
Ambient temperature [°C] 0 to +50 0 to +50
With top hat (DIN) rail RL-DP-4-SW-24-0002-00-0 RL-DP-5-SW-24-0002-00-0
With control cabinet RL-DP-4-SW-24-0004-00-0 RL-DP-5-SW-24-0004-00-0 Linear robots

Delta robot

SCARA robot

For more information, see the technical
data sheet Further kinematics
u www.igus-asean.com/DP
Accessories

ASEAN 09/2023 ASEAN 09/2023

168) DOF: degree of freedom
